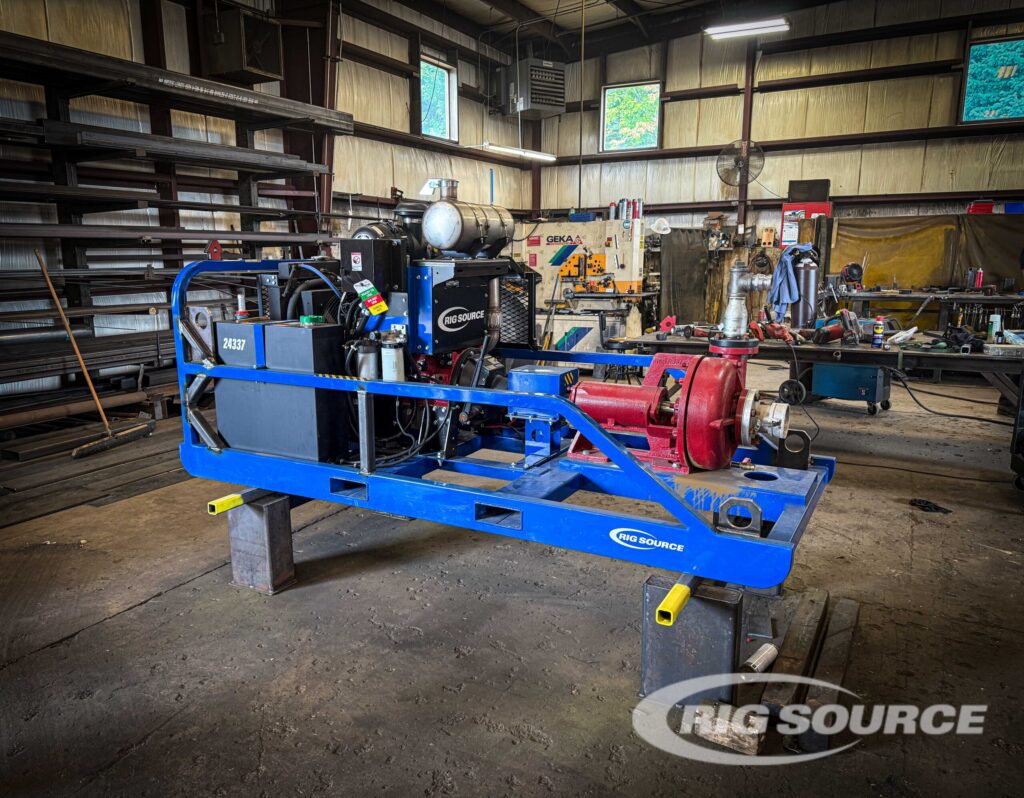

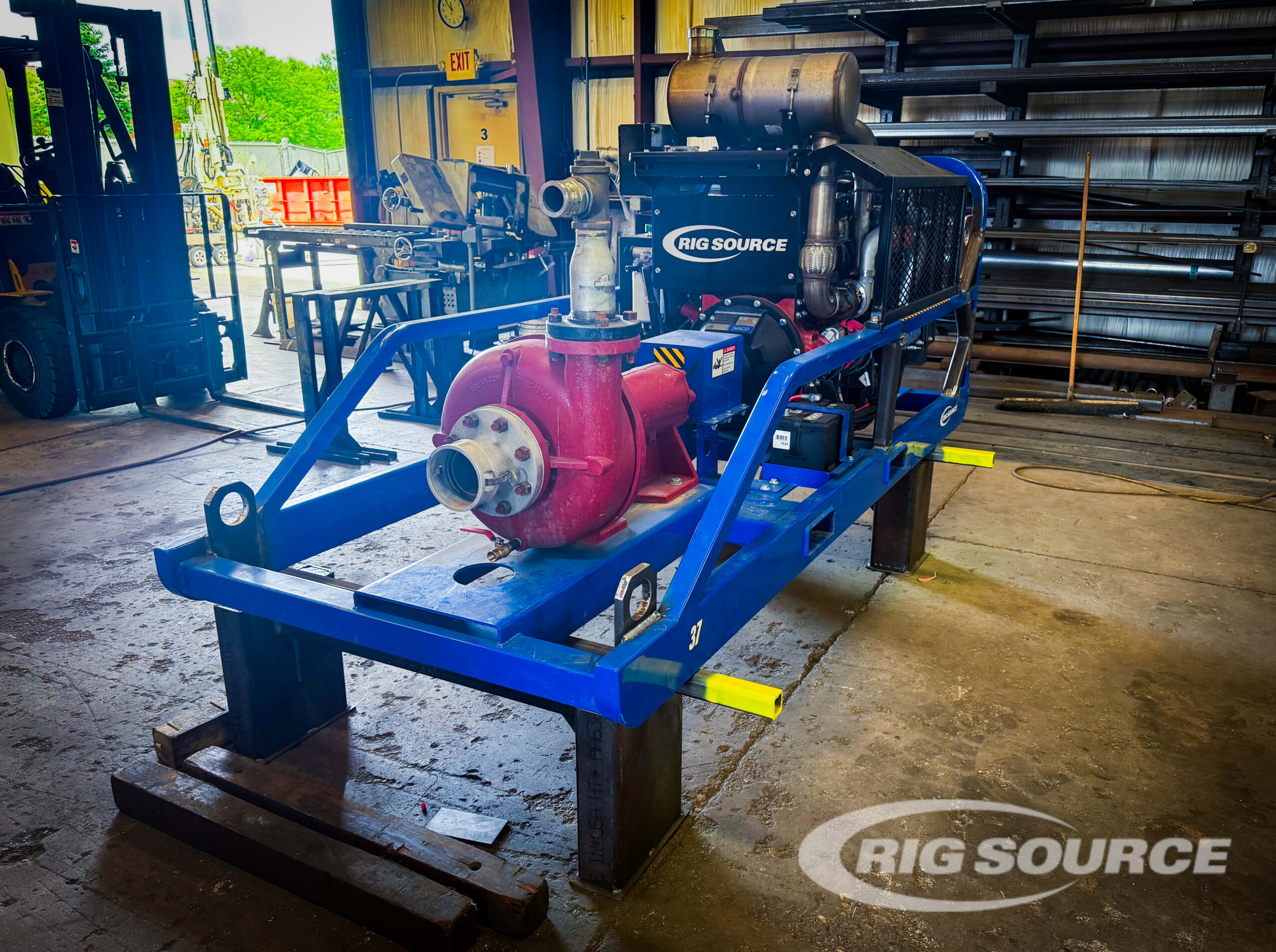

The Power Mule HP Pump Skid is a diesel-powered pump skid designed to support high-volume fluid movement for drilling and jobsite applications. Equipped with a 250 long body 4x3x13 pump and Cummins QSF2.8 diesel engine, this unit provides an estimated 550 GPM, approximately 250 ft of head, and approximately 110 PSI. Built with engine-mounted support components and a roll cage, this pump skid is configured for dependable field use.
Key Features
• Designed to support high-volume fluid movement on drilling and jobsite applications
• Skid-mounted configuration for field use and transport
• Diesel-powered setup for jobsite performance
• Suitable for pumping water, drilling fluids, and support fluids depending on application
• Built for demanding field conditions with a protective roll cage
• Configured for use with drilling support operations, dewatering support, and fluid transfer needs
Unit Specifications
• Year: 2024
• Pump: 250 long body pump, 4x3x13
• Estimated Flow Rate: 550 GPM
• Estimated Head: Approximately 250 ft
• Estimated Pressure: Approximately 110 PSI
• Mechanical Seal: Standard or high-pressure mechanical seal
• Coupler: Magnaloy 600 Series coupler
• Approximate Weight: 3,000 lbs

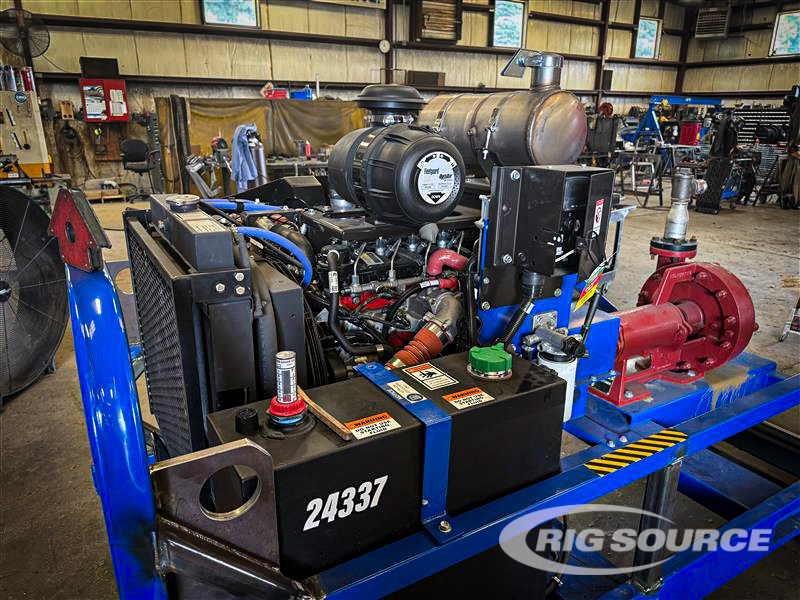

• Engine: Cummins QSF2.8 diesel
• Engine Power Rating: 74 hp @ 2,200 rpm
• Clutch: WPT clutch
• Emissions: Tier 4 Final
• PTO: Included
• Protective fabricated roll cage
Standard Features
• Radiator, suction fan, and finger guard mounted to engine
• Two-stage dry type air cleaner, mounted to engine
• Starter
• 12-volt alternator, 80 amp
• Engine mounts
• Glow plug
• Oil filter mounted to engine
• Fuel filter mounted to engine
• Cummins instrument panel
Specifications are provided for general reference and may vary by unit configuration.
Interested in this Power Mule HP Pump Skid? Contact Rig Source at (630) 365-1649 to confirm current availability, rental options, purchase options, pricing, and configuration details.
