Wireline Coring Systems help recover core samples without removing the full drill string from the borehole. Rig Source offers V-latch core barrel systems and replacement components for core drilling applications.
Wireline Coring Systems

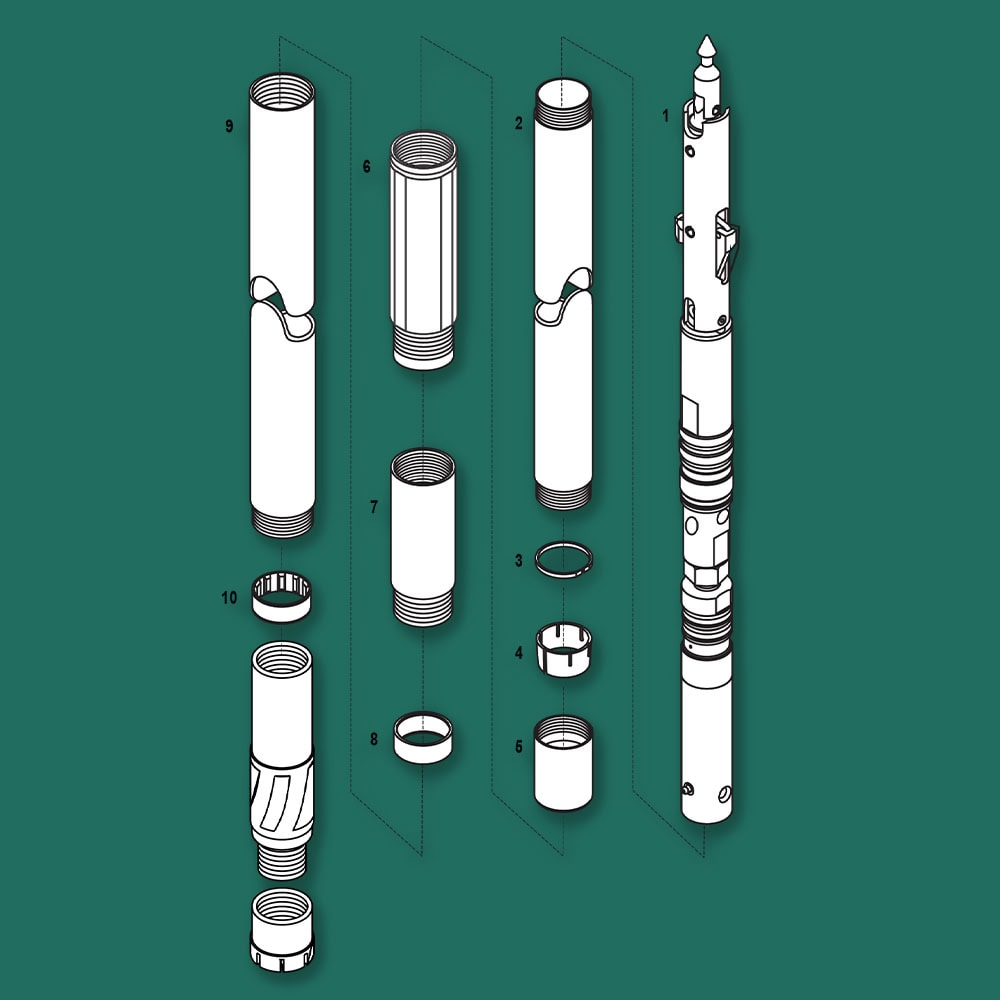

BWL V-Latch Core Barrel
| Part Number | Description |
|---|---|
| 1700211 | BWL Core Barrel Assembly - 5ft |
| 1700065 | BWL Inner Tube - 5ft |
| 1700001 | BWL Outer Tube - 5ft |
| 1700212 | BWL Core Barrel Assembly - 10ft |
| 1700070 | BWL Inner Tube -10ft |
| 1700002 | BWL Outer Tube - 10ft |
| 1700052 | BWL Head Assembly - V Latch |
| 1700025 | BWL Stop Ring |
| 1700015 | BWL Fluted Core Lifter |
| 1700020 | BWL Core Lifter Case |
| 1700045 | BWL Locking Coupling, Full Hole |
| 1700040 | BWL Adapter Coupling |
| 1700035 | BWL Landing Ring |
| 1700030 | BWL Brass Inner Tube Stabalizer Ring |
| 2500030 | BWL Reaming Shell |
HWL V-Latch Core Barrel
| Part Number | Description |
|---|---|
| 1800455 | HWL Core Barrel Assembly - 5ft |
| 1800005 | HWL Inner Tube - 5ft |
| 1800030 | HWL Outer Tube - 5ft |
| 1800450 | HWL Core Barrel Assembly - 10ft |
| 1800025 | HWL Inner Tube -10ft |
| 1800035 | HWL Outer Tube - 10ft |
| 1800183 | HWL Head Assembly - V Latch |
| 1800020 | HWL Stop Ring |
| 1800022 | HWL Fluted Core Lifter PRM |
| 1800011 | HWL Core Lifter Case PRM |
| 1800090 | HWL Locking Coupling, Full Hole |
| 1800130 | HWL Adapter Coupling |
| 1800135 | HWL Landing Ring |
| 1800260 | HWL Brass Inner Tube Stabalizer Ring |
| 2350150 | HWL Reaming Shell |
NWL V-Latch Core Barrel
| Part Number | Description |
|---|---|
| 1950405 | NWL Core Barrel Assembly - 5ft |
| 1950020 | NWL Inner Tube - 5ft |
| 1950030 | NWL Outer Tube - 5ft |
| 1950410 | NWL Core Barrel Assembly - 10ft |
| 1950025 | NWL Inner Tube -10ft |
| 1950035 | NWL Outer Tube - 10ft |
| 1950143 | NWL Head Assembly - V Latch |
| 1950010 | NWL Stop Ring |
| 1950005 | NWL Fluted Core Lifter |
| 1950000 | NWL Core Lifter Case |
| 1950105 | NWL Locking Coupling, Full Hole |
| 1950110 | NWL Adapter Coupling |
| 1950115 | NWL Landing Ring |
| 1950120 | NWL Brass Inner Tube Stabalizer Ring |
| 2400265 | NWL Reaming Shell |
N2WL V-Latch Core Barrel
| Part Number | Description |
|---|---|
| 1850255 | N2WL Core Barrel Assembly - 5ft |
| 1850100 | N2WL Inner Tube - 5ft |
| 1950030 | N2WL Outer Tube - 5ft |
| 1850250 | N2WL Core Barrel Assembly - 10ft |
| 1850105 | N2WL Inner Tube -10ft |
| 1950035 | N2WL Outer Tube - 10ft |
| 1850241 | N2WL Head Assembly - V Latch |
| 1850035 | N2WL Stop Ring |
| 1850042 | N2WL Fluted Core Lifter PRM |
| 1850044 | N2WL Core Lifter Case PRM |
| 1950105 | N2WL Locking Coupling, Full Hole |
| 1950110 | N2WL Adapter Coupling |
| 1850055 | N2WL Landing Ring |
| 1850060 | N2WL Brass Inner Tube Stabalizer Ring |
| 2400265 | NWL Reaming Shell |
N3WL V-Latch Core Barrel
| Part Number | Description |
|---|---|
| 1900255 | N3WL Core Barrel Assembly - 5ft |
| 1950020 | N3WL Inner Tube - 5ft |
| 1950030 | N3WL Outer Tube - 5ft |
| 1900250 | N3WL Core Barrel Assembly - 10ft |
| 1950025 | N3WL Inner Tube -10ft |
| 1950035 | N3WL Outer Tube - 10ft |
| 1950143 | N3WL Head Assembly - V Latch |
| 1900070 | N3WL Stop Ring |
| 1900001 | N3WL Fluted Core Lifter PRM |
| 1900006 | N3WL Core Lifter Case PRM |
| 1950105 | N3WL Locking Coupling, Full Hole |
| 1950110 | N3WL Adapter Coupling |
| 1950115 | N3WL Landing Ring |
| 1950120 | N3WL Brass Inner Tube Stabalizer Ring |
| 2400265 | NWL Reaming Shell |
