Geoprobe Manufactured Tooling

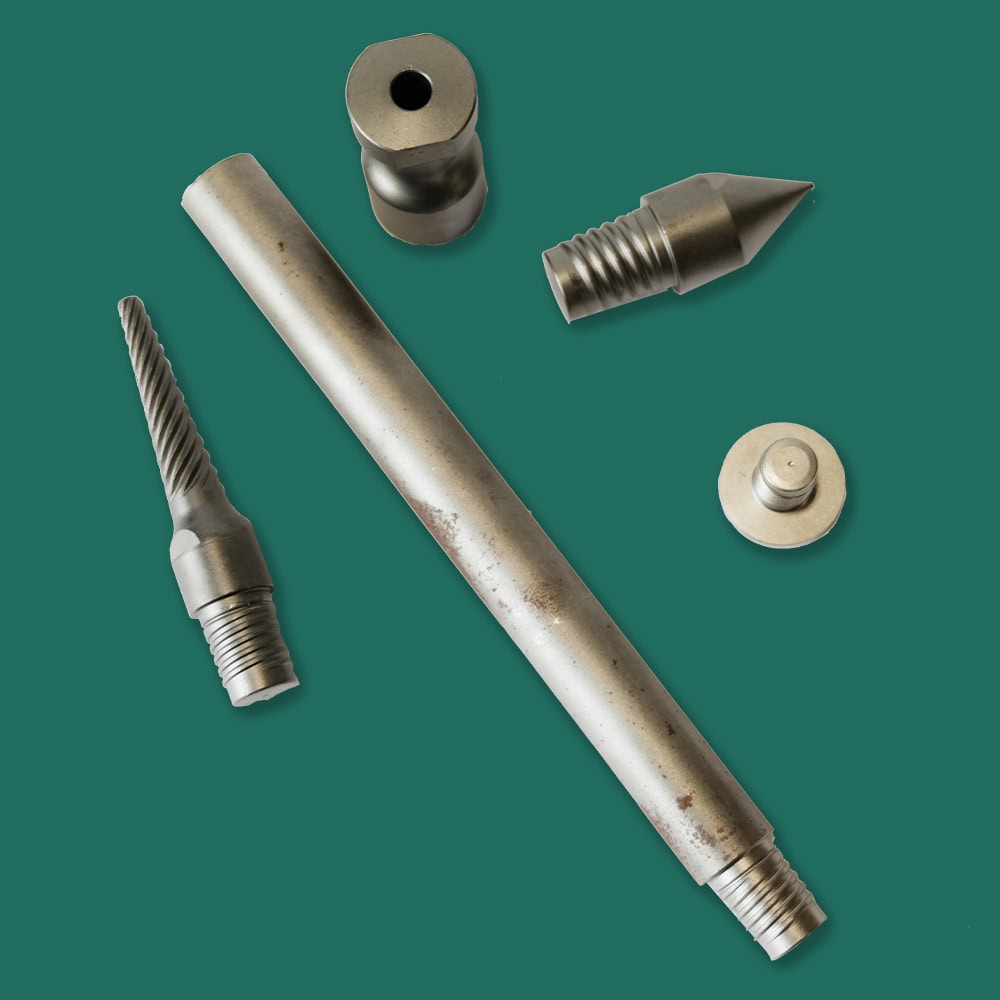

Rig Source offers Geoprobe^® Manufactured Tooling for soil sampling and groundwater sampling applications, including DT22, MC5, MC7, and SP16 tooling. Available options include cutting shoes, drive caps, drive heads, liners, probe rods, sample tubes, and sampler accessories.

DT22 Soil Sampling System
MC5 Soil Sampling (LWCR)
MC5 Soil Sampling (Stop-Pin)
MC7 Soil Sampling System
SP16 Groundwater Sampler

Geoprobe DT22 Soil Sampling System

DT22 Cutting Shoes

Part Number	Description	Notes
204774	DT22 Cutting Shoe	1.125 in. ID, 2.375 in. OD
212678	DT22 Expendable Cutting Shoe Holder
215278	DT22 Expendable Shoe

DT22 Discrete Sampling Option

Part Number	Description	Notes
204236	DT22 Drive Cap	1.25 in. Rod, Threadless
204237	DT22 Discrete Point	1.25 in. Pin

DT22 Drive Caps & Cushion

Part Number	Description	Notes
206249	2.25 in. Drive Cap	GH60, Threadless
206187	2.25 in. Drive Cap	GH40, Threadless
212548	DT22 Drive Cushion
601006	DT22 Drive Bumper

DT22 Drive Heads

Part Number	Description	Notes
213916	DT22 Liner Drive Head	1.25 Pin
228499	DT22 Detent Drive Head	1.25 Pin
209428	DT22 Fishing Tool Head	1.25 Pin

DT22 Light-Weight Center Rods

Part Number	Length	Notes
205232	60 in.	6 lbs., 1.25 in. OD, .625 in. ID
203988	48 in.	5.1 lbs., 1.25 in. OD, .625 in. ID
209949	36 in.	4.2 lbs., 1.25 in. OD, .625 in. ID

DT22 Liners & Accessories

Part Number	Description	Notes
235306	DT22 Liner (Core Catcher)	60 in.,Quantity: 50
235304	DT22 Liner (Core Catcher)	48 in.,Quantity: 50
235305	DT22 Liner (Core Catcher)	36 in.,Quantity: 50
235338	DT22 Liner (No Core Catcher)	60 in. Quantity: 50
235340	DT22 Liner (No Core Catcher)	48 in. Quantity: 50
205516	DT22 Liner Cutter
213918	O-Ring (MC5 Point, DT22 Point, SP16 SS Screen)	Quantity: 25
213913	O-Ring (DT22 Expendable Cutting Shoe)	Quantity: 50
213915	DT22 Rebuild Kit	For 213916 (DT22 Drive Head)
202221	DT22 Liner Drive Head Bolt	Quantity: 20
231158	DT22 Detent Drive Head Rebuild Kit	For 228499 (DT22 Detent Drive Head)
210804	DT22 Drive Cushion Assist Handle	For use with DT22 Drive Cushion
213909	DT22 Vinyl End Caps	50 Pair
206471	Hydraulic Extruder Adapter (DT22)	Pin
205743	Hydraulic Extruder Plunger	DT22

DT22 Probe Rods

Part Number	Description	Notes
204767	2.25 in. Probe Rods, 2.25 in. OD, 1.5 in. ID	60 in.
204766	2.25 in. Probe Rods, 2.25 in. OD, 1.5 in. ID	48 in.
206706	2.25 in. Probe Rods, 2.25 in. OD, 1.5 in. ID	36 in.
206588	2.25 in. Probe Rods, 2.25 in. OD, 1.5 in. ID	24 in.
204777	2.25 in. Probe Rods, 2.25 in. OD, 1.5 in. ID	12 in.

Geoprobe MC5 Soil Sampling System (LWCR)

MC5 Soil (LWCR) Cutting Shoes

Part Number	Description	Notes
204217	MC5 Cutting Shoe Standard Shank	1.5 in. ID
204500	MC5 Cutting Shoe Extended Shank	1.5 in. ID, 2.375 in. OD
205705	MC5 Cutting Shoe Standard Shank	1.35 in. ID, 2.375 in. OD
206460	MC5 Cutting Shoe Extended Shank	1.35 in. ID, 2.3 in. OD
204985	MC5 Cutting Shoe Extended Shank	1.25 in. ID, 2.375 in. OD
206560	MC5 Cutting Shoe Tapered	2.25 in. OD

MC5 Soil (LWCR) Discrete Sampling

Part Number	Description	Notes
204389	1.25 in. Centering Drive Cap	Threadless
205390	MC5 Center Rod Plug	1.25 in. THD
205387	MC5 Piston Point	1.5 in. OD w/ O-Ring
205113	MC5 Piston Point Undersized	1.35 in. OD w/ O-Ring

MC5 Soil (LWCR) Drive Caps & Drive Heads

Part Number	Description	Notes
206249	2.25 inch Drive Cap	GH60, Threadless
206187	2.25 inch Drive Cap	GH40, Threadless
205475	MC5 Drive Head	2.25 Center Rod, 2.375 OD

MC5 Soil (LWCR) Light-Weight Center Rods

Part Number	Description	Notes
205232	60 in., 1.25 in. OD, .625 in. ID	6 lbs.
203988	48 in., 1.25 in. OD, .625 in. ID	5.1 lbs.
209949	36 in., 1.25 in. OD, .625 in. ID	4.2 lbs.

MC5 Soil (LWCR) Liners & Accessories

Part Number	Description	Notes
600131	MC5 Liners	60 in., PVC Quantity: 66
600993	MC5 Liners	48 in., PVC Quantity: 66
213872	MC5 Liners	36 in., PVC Quantity: 66
213873	MC5 Liners	24 in., PVC Quantity: 66
213845	MC5 Liner Cutter
213856	MC5 Liner Core Catcher	Quantity: 28
600989	MC5 Liner Core Catcher	Quantity: 100
213857	MC5 Liner Spacer	Quantity: 66
600988	MC5 Liner Spacer	Quantity: 500
213918	O-Ring (MC5 Point, DT22 Point, SP16 SS Screen)	Quantity: 25
213843	MC5 Vinyl End Caps	66 Pair
205697	Hydraulic Extruder Adapter	MC5
203559	Hydraulic Extruder Plunger	MC5
601003	Nylon Brush	MC5 Tools

MC5 Soil (LWCR) MC5 Sample Tubes

Part Number	Description	Notes
204259	MC5 Sample Tube	60 in.
204218	MC5 Sample Tube	48 in.
204550	MC5 Sample Tube	36 in.
215665	MC5 Sample Tube	24 in.

Geoprobe MC5 Soil Sampling System (Stop-Pin)

MC5 Soil (Stop-Pin) Cutting Shoes

Part Number	Description	Notes
204217	MC5 Cutting Shoe Standard Shank	1.5 in. ID
204500	MC5 Cutting Shoe Extended Shank	1.5 in. ID, 2.375 in. OD
205705	MC5 Cutting Shoe Standard Shank	1.35 in. ID, 2.375 in. OD
206460	MC5 Cutting Shoe Extended Shank	1.35 in. ID, 2.3 in. OD
204985	MC5 Cutting Shoe Extended Shank	1.25 in. ID, 2.375 in. OD
206560	MC5 Cutting Shoe Tapered	2.25 in. OD

MC5 Soil (Stop-Pin) Discrete Sampling

Part Number	Description	Notes
201276	MC5 Quick Link Stop Pin Remover	Threadless
213834	Extension Rod Centering Plug
201349	MC5 Stop Pin	For 1.25 in. Drive Heads, O-Ring: 213812
202723	MC5 Stop Pin	For 1.5 in. Drive Heads
201179	MC5 Stop Pin Coupler
205390	MC5 Center Rod Plug	1.25 in. THD
205387	MC5 Piston Point	1.5 in. OD w/ O-Ring
205113	MC5 Piston Point Undersized	1.35 in. OD w/ O-Ring

MC5 Soil (Stop-Pin) Drive Caps & Drive Heads

Part Number	Description	Notes
205021	MC5 Drive Head	1.25 Pin with SP Thd
204257	MC5 Drive Head	1.5 Pin with SP Thd
227706	MC5 Drive Head	1.75 Pin with SP Thd
205372	MC5 Drive Head	1.25 Pin with 1/8 Bore
205371	MC5 Drive Head	1.5 Pin with 1/4 Bore

MC5 Soil (Stop-Pin) Liners & Accessories

Part Number	Description	Notes
600131	MC5 Liners	60 in., PVC Quantity: 66
600993	MC5 Liners	48 in., PVC Quantity: 66
213872	MC5 Liners	36 in., PVC Quantity: 66
213873	MC5 Liners	24 in., PVC Quantity: 66
213845	MC5 Liner Cutter
213856	MC5 Liner Core Catcher	Quantity: 28
600989	MC5 Liner Core Catcher	Quantity: 100
213857	MC5 Liner Spacer	Quantity: 66
600988	MC5 Liner Spacer	Quantity: 500
213918	O-Ring (MC5 Point, DT22 Point, SP16 SS Screen)	Quantity: 25
213843	MC5 Vinyl End Caps	66 Pair
205697	Hydraulic Extruder Adapter	MC5
203559	Hydraulic Extruder Plunger	MC5
601003	Nylon Brush	MC5 Tools
213837	Extension Rod Handle
213839	Extension Rod Quick Link Box
213838	Extension Rod Quick Link Pin
600977	Tap 9/16 in. Reverse THD
213814	Die and Handle Kit	9/16 in. THD
213743	O-Ring Pick

Geoprobe MC7 Soil Sampling System

MC7 Liners & Accessories

Part Number	Description	Notes
600720	DT45/MC7 Liners	72 in., PVC Built to Order Quantity: 18
600719	DT45/MC7 Liners	60 in., PVC Quantity: 18
600721	DT45/MC7 Liners	48 in., PVC Quantity: 18
206987	DT45/MC7 Liner Cutter
207000	DT45 Core Catcher
210856	DT45 Core Catcher Bypass Ring
102981	O-Ring
205773	DT45 Retainer / MC7 Cutting Shoe Wrench
207439	DT45 / MC7 Vinyl End Caps	18 Pair
206639	Hydraulic Extruder Adapter	DT45 / MC7
206317	Hydraulic Extruder Plunger	DT45 / MC7

MC7 Probe Rods

Part Number	Description	Notes
204767	2.25 in. Probe Rods, 2.25 in. OD, 1.5 In. ID	60 in.
204766	2.25 in. Probe Rods, 2.25 in. OD, 1.5 In. ID	48 in.
204777	2.25 in. Probe Rods, 2.25 in. OD, 1.5 In. ID	12 in.
213773	1.25 in. Probe Rods, 1.25 in. OD, .625 In. ID	60 in.
213769	1.25 in. Probe Rods, 1.25 in. OD, .625 In. ID	48 in.
213753	1.25 in. Probe Rods, 1.25 in. OD, .625 In. ID	12 in.

MC7 Sample Tubes

Part Number	Description	Notes
216885	MC7 Sample Tubes	60 in.
211838	MC7 Sample Tubes	48 in.
216883	MC7 Sample Tubes	12 in.

MC7 Soil Discrete Sampling Option

Part Number	Description	Notes
204389	1.25 in. Centering Drive Cap	Threadless
216119	MC7 Center Rod Spacer
218055	MC7 Piston Point	O-Ring: 203598

MC7 Soil Sampling Cutting Shoes

Part Number	Description	Notes
216121	MC7 Cutting Shoe

MC7 Soil Sampling Drive Caps & Drive Heads

Part Number	Description	Notes
206249	2.25 in. Drive Cap	GH60, Threadless
211889	MC7 Sample Drive Head

Geoprobe SP16 Groundwater Sampler

SP16 Accessories

Part Number	Description	Notes
214031	SP16 Grout Nozzle
214029	SP16 Screen Push Adapter
214056	Mini Bailer	0.4" OD X 20"
214058	3/8 Tubing Check Valve End
214057	Replacement Check Balls (3/8 Check Valve)	Quantity: 5
202797	O-Ring Service Kit (SP16 1.5 Rod)

SP16 Groundwater Sampler Drive Caps

Part Number	Description	Notes
211776	SP Drive Head	1.25 Pin, 1.63 in. OD
202633	SP16 Drive Head	1.5 Pin, .625 in. Bore
203262	SP16 Drive Head	1.5 Pin, .5 in. Bore
223178	SP16 Drive Head	1.75 Pin, .5 in. Bore

SP16 Latching Sampler Option

Part Number	Description	Notes
240694	Latching Body Asm MSP/MBP
239184	O-Ring (SP Latch Body)	Quantity: 10
240695	SP Latch	Quantity: 10
239716	Shear Pin Latching SP MSP/MBP	Quantity: 20
238405	SP16 Latching Drive Head	1.5 Pin
103212	MBP/MSP Check Ball Stainless Steel	Quantity: 10

SP16 O-rings

Part Number	Description	Notes
213771	O-Ring (1.25 in. Probe Rod)	Quantity: 25
202695	O-Ring (1.5 in. Probe Rod)	Quantity: 25
220387	O-Ring (1.75 in. Probe Rod)	Quantity: 25
102256	O-Ring (SP16 Drive Head)	Quantity: 25
213918	O-Ring (MC5 Point, DT22 Point, SP16 SS Screen)	Quantity: 25
214037	O-Ring (SP15/SP16 Expendable Point)	Quantity: 25

SP16 Screens/Plugs

Part Number	Description	Notes
214027	SP16 Screen	Stainless Steel
214028	SP16 Screen	PVC, Recoverable
202821	SP16 Screen	0.65 in. ID, 0.010 Slot, PVC, Disposable
601033	SP16 Grout Plug	Quantity: 25

SP16 Sheath/Points

Part Number	Description	Notes
236510	SP16 Sample Sheath
214036	SP16/SP22 Expendable Point Steel	1.625 in. OD, Quantity: 25
213617	SP16/SP22 Expendable Point Steel	1.75 in. OD, Quantity: 25

SP16 Tubing/Check Valve

Part Number	Description	Notes
600144	Nylon Grout Tubing	3/8 in. OD x 1/4 in. ID x 100 ft.
601063	PE Tubing	3/8 in. OD x 1/4 in. ID x 500 ft.
214061	Tubing Check Valve	3/8 in. OD Tubing
