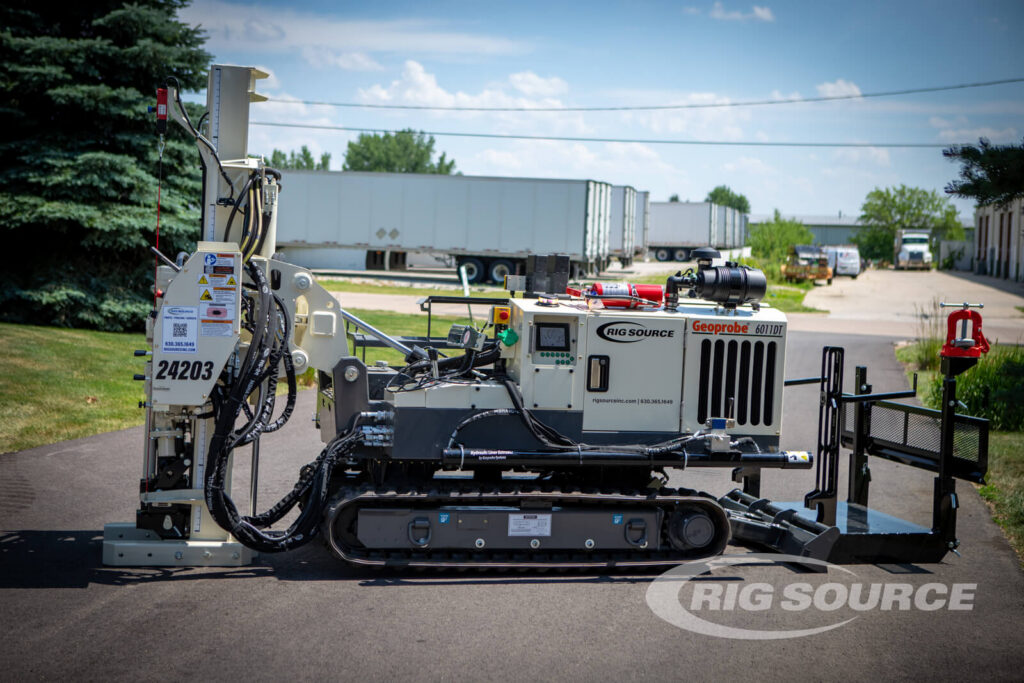

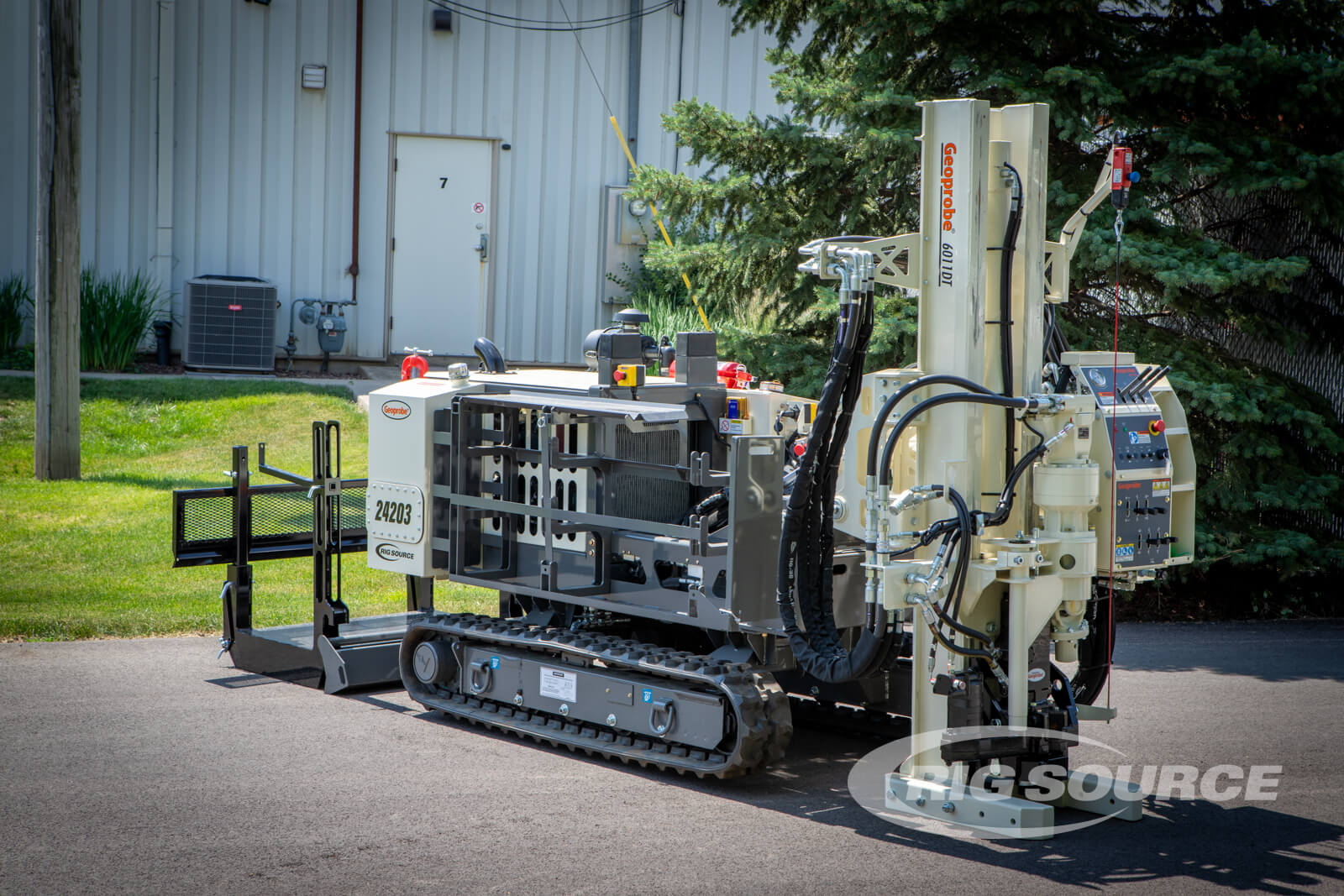

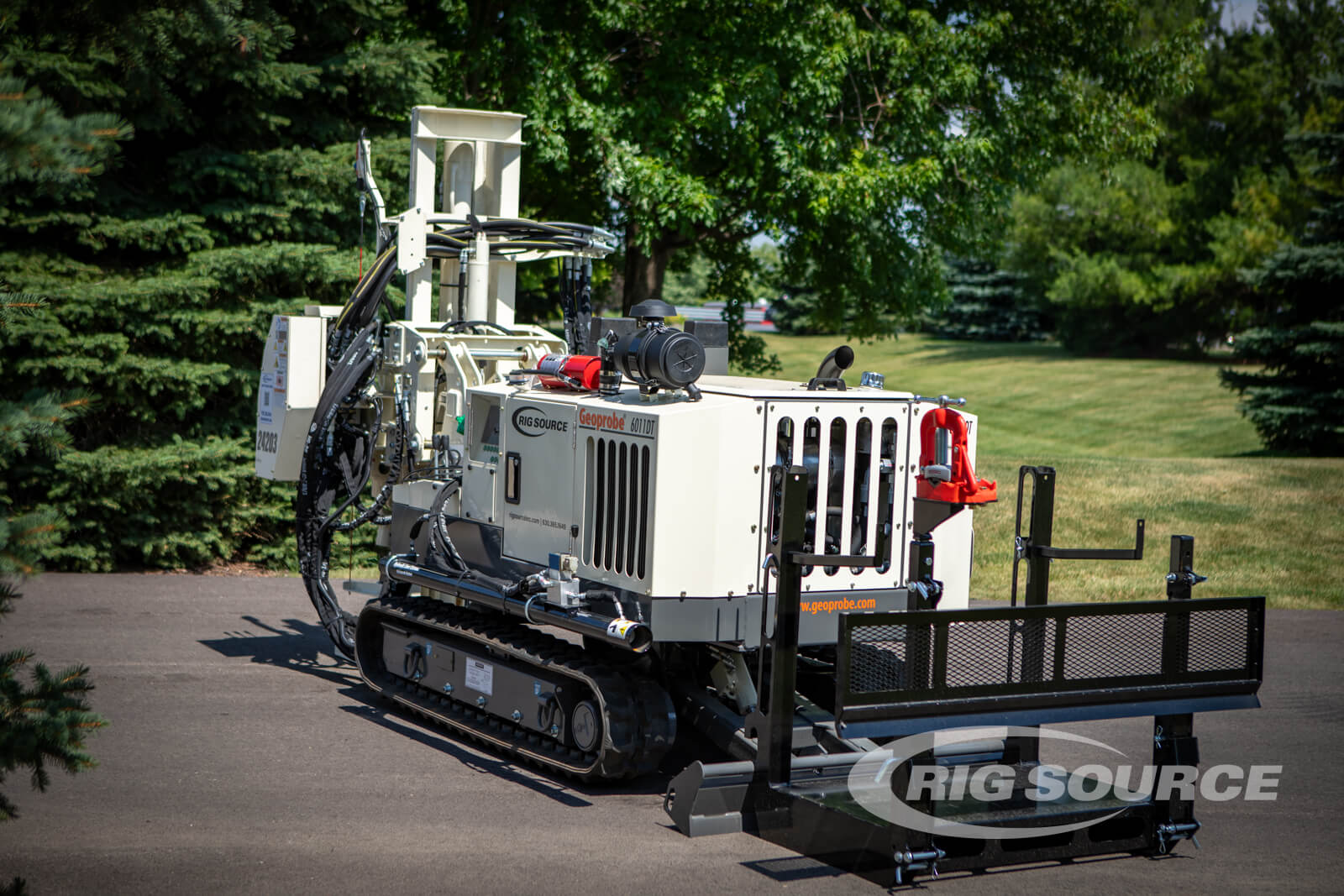

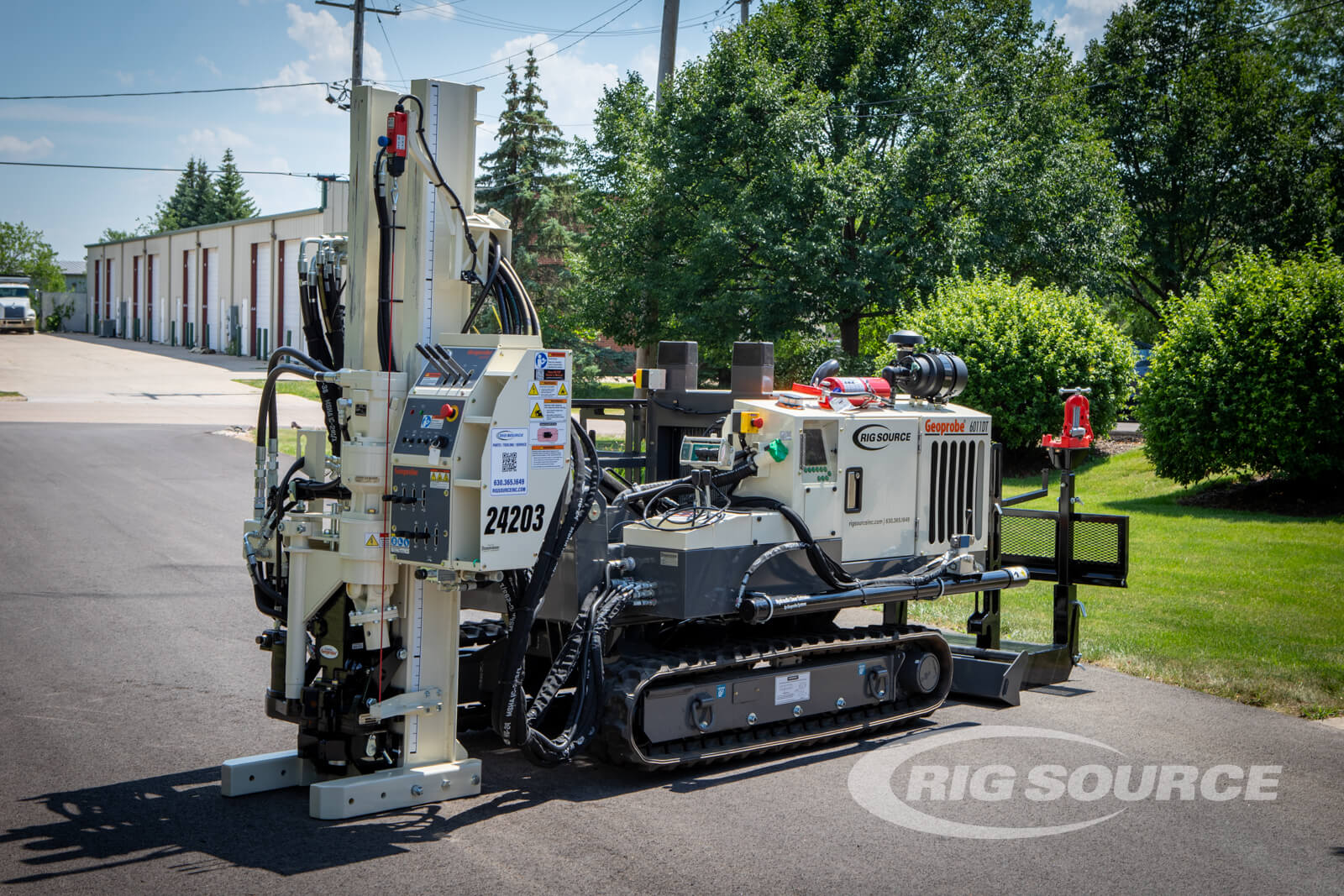

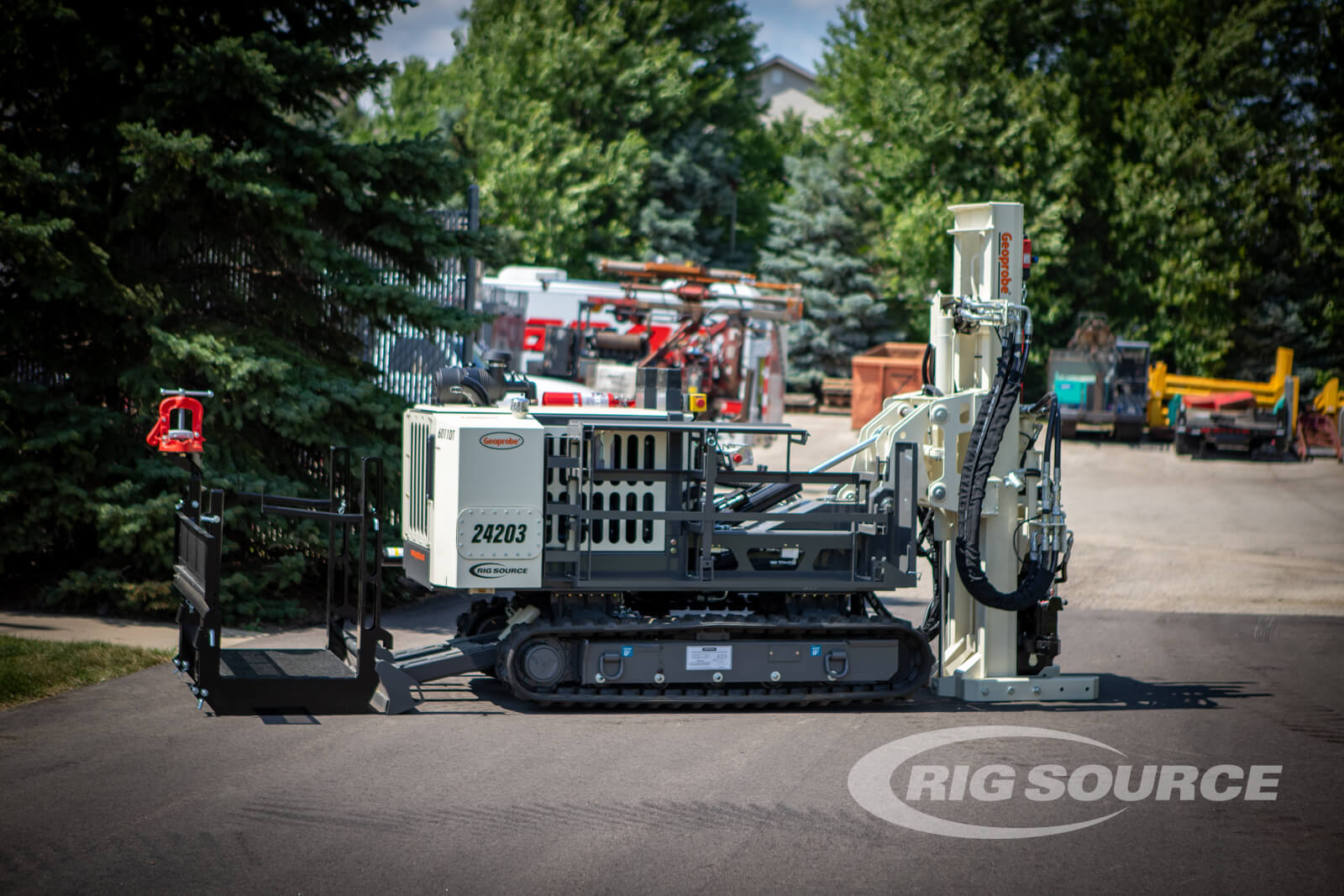

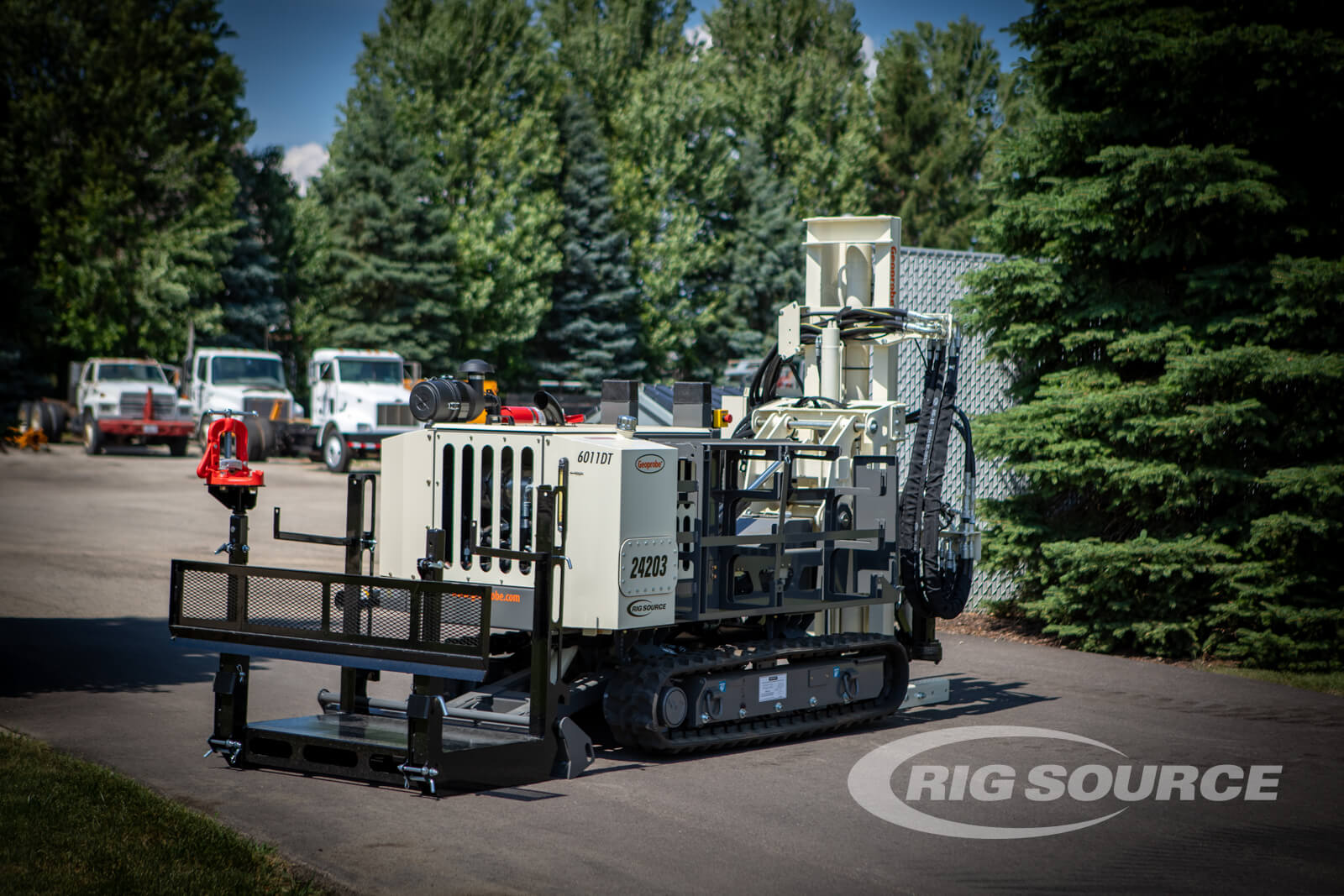

The Geoprobe 6011DT is a compact direct push drill rig designed for contractors who need strong sampling capability in a small, maneuverable footprint. Built for tight-access sites, indoor work, and direct push applications, the 6011DT offers reliable performance with compact track mobility, load-sense hydraulics, and direct push tooling support.
Key Features
• Compact direct push drill rig designed for tight-access work
• 48 in width supports maneuverability in confined spaces and indoor applications
• Track-mounted carrier for jobsite mobility
• Load-sense hydraulics help reduce fuel consumption
• Rear stabilizer blade works with Geoprobe drop racks
Unit Specifications
• Year: 2024
• Engine: Kubota V1505 LRC
• Horsepower: 44 hp
• Fuel Capacity: 18 gal
• Pump Type: Axial piston load-sense
• Pump Max Pressure: 3,400 psi
• Pump Max Flow: 24 gpm
• Direct Push Hammer: GH63
• Percussion Rate: 32 Hz
• Hammer Rotation Torque: 560 ft-lb
• Hammer Rotation Speed: 200 rpm
• Head Travel: 66 in / 5.5 ft
• Head Crowd Force: 32,000 lbs at cylinder
• Head Pull Force: 43,000 lbs at cylinder
• Dimensions, Transport: 48 in W x 106 in L x 77 in H
• Height, Deployed with Head Full Up: 151 in / 12.6 ft
• Base Unit Weight: 4,800 lbs
Drill Mast & Positioning
• Extension, Fore and Aft: 15 in
• Lateral Movement, Side to Side: 6 in
• Drill Mast Dump: 30 in
• Rear Stabilizer Travel: 24 in
• Rear Stabilizer Width: 48 in
• Rear Stabilizer Lift: 1,250 lbs
• Head Feed Carriage: Composite slides
Standard Features
• Two-speed rotary head
• 5 ft hydraulic extruder kit
• Rod rack
• Control panel side storage
• Drop rack system with rod rack
• Vise mount assembly bench yoke vise
• Interlocked rotation guard
Specifications are provided for general reference and may vary by unit configuration.
Interested in this Geoprobe 6011DT? Contact Rig Source at (630) 365-1649 to confirm current availability, rental options, purchase options, pricing, and configuration details.
