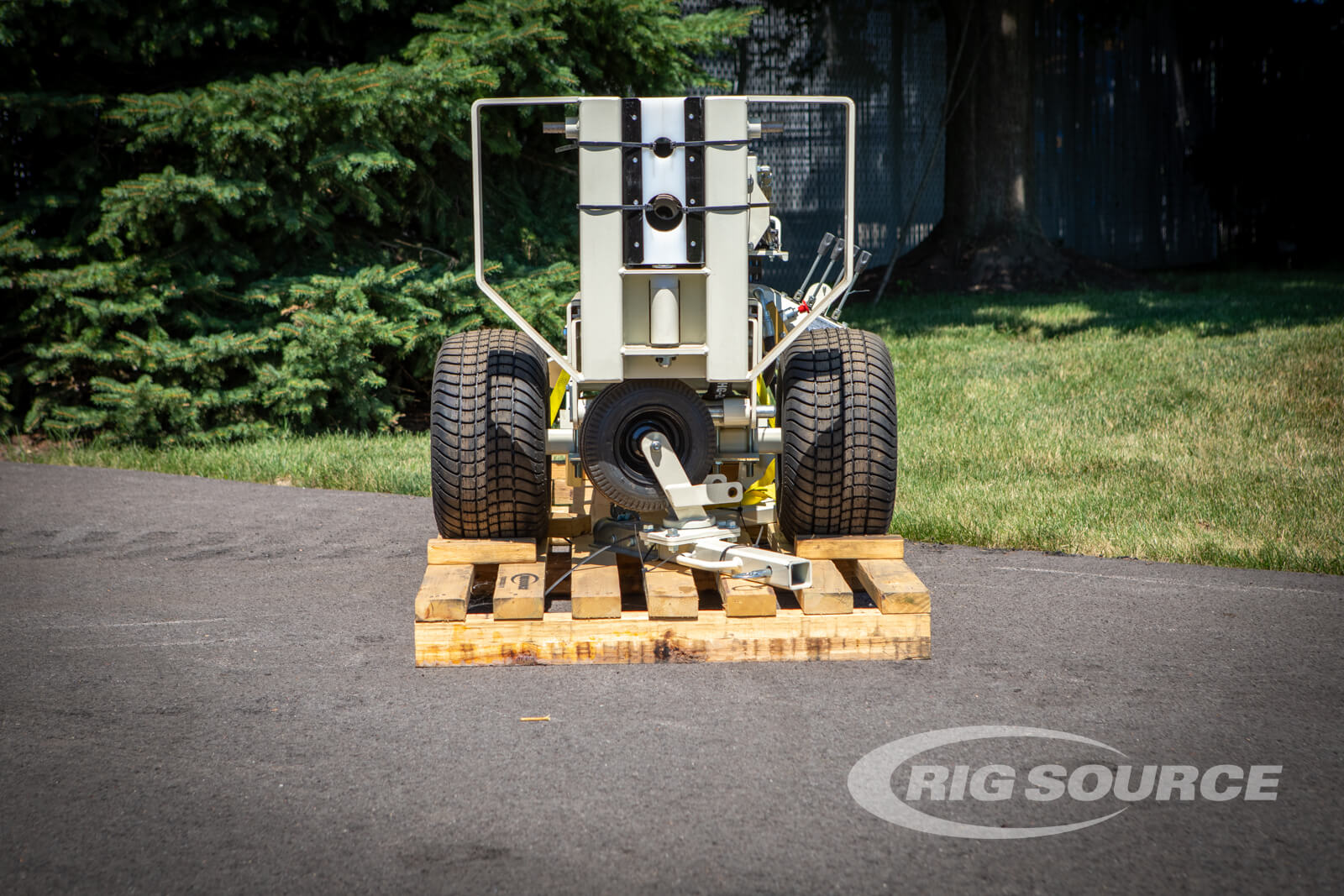

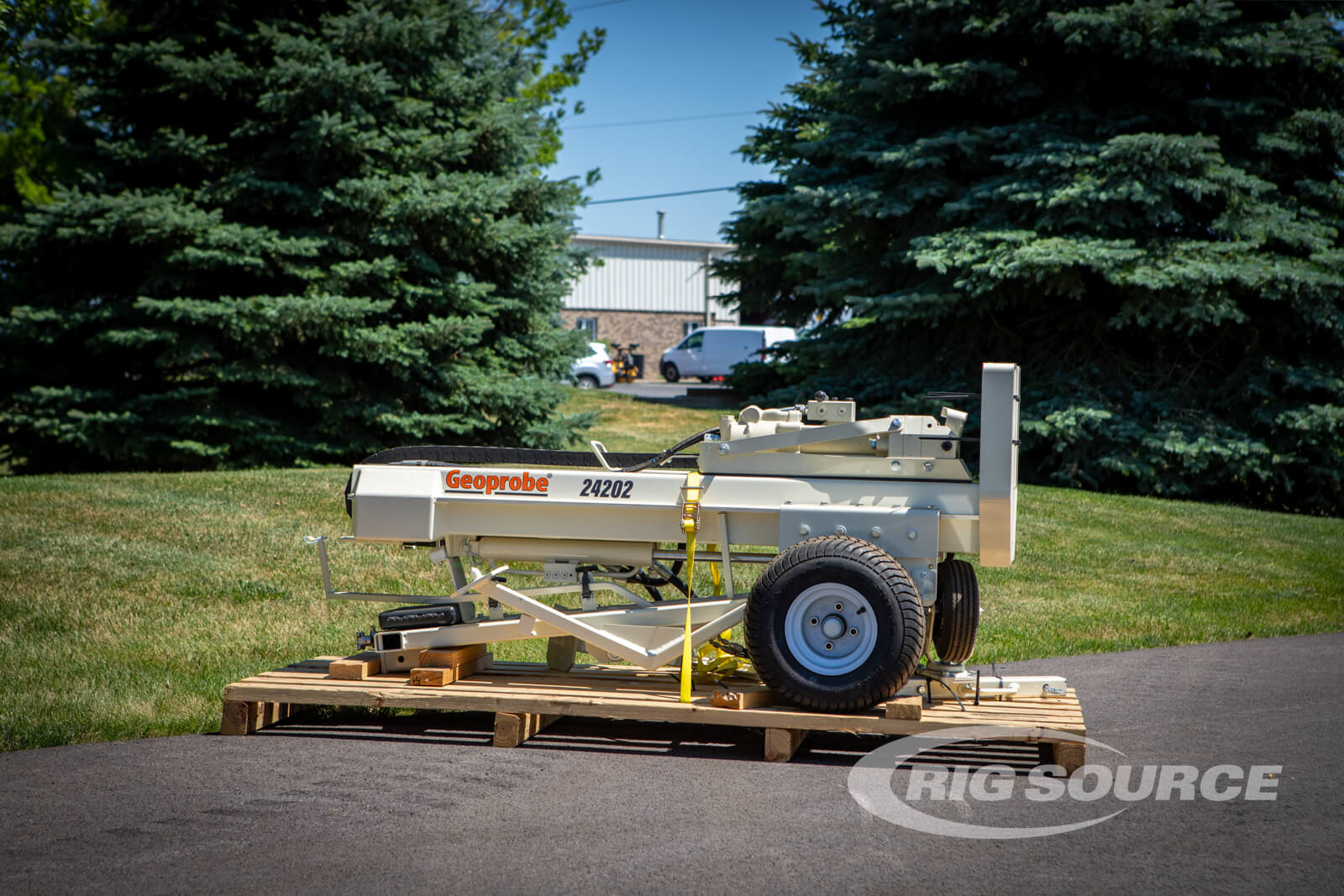

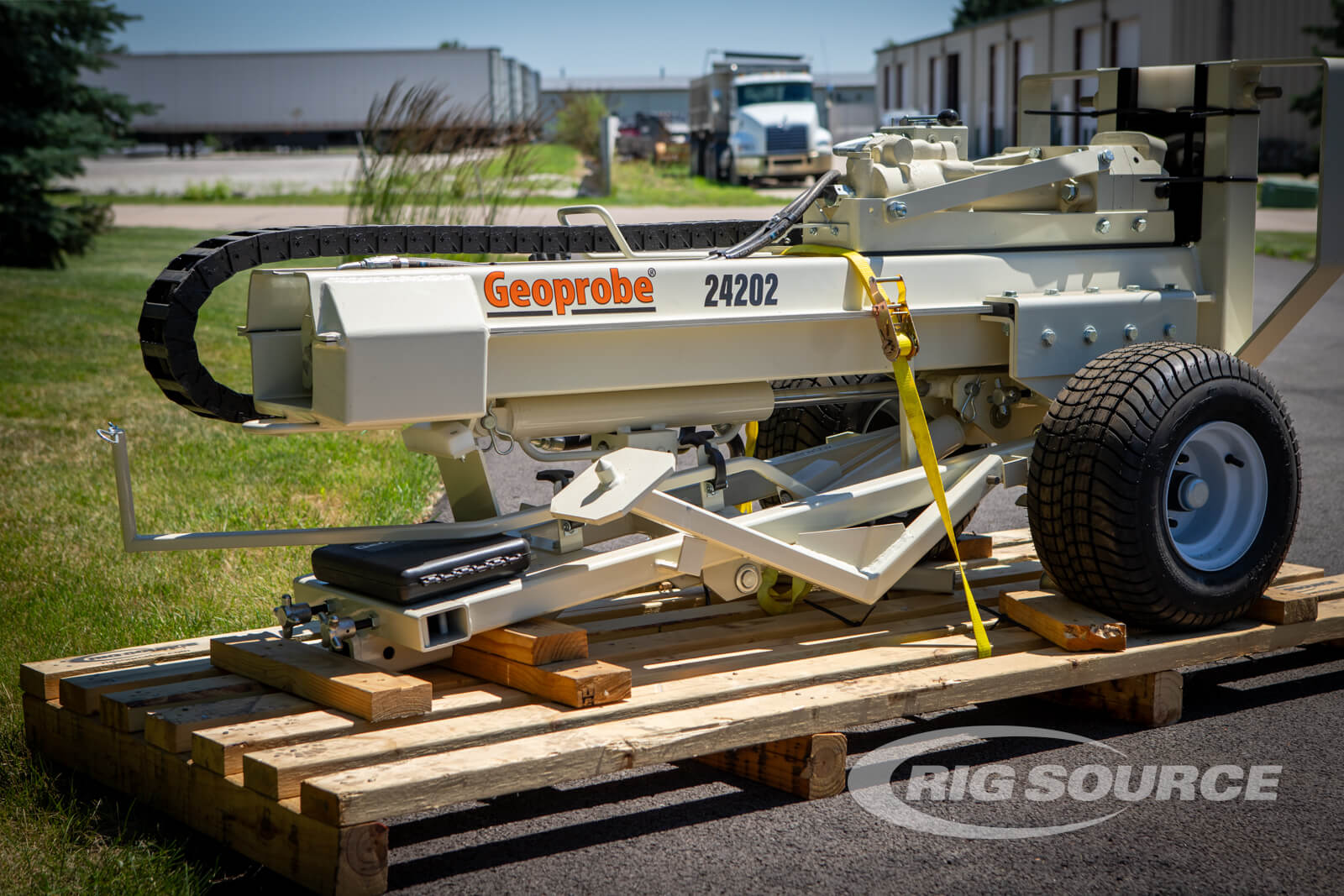

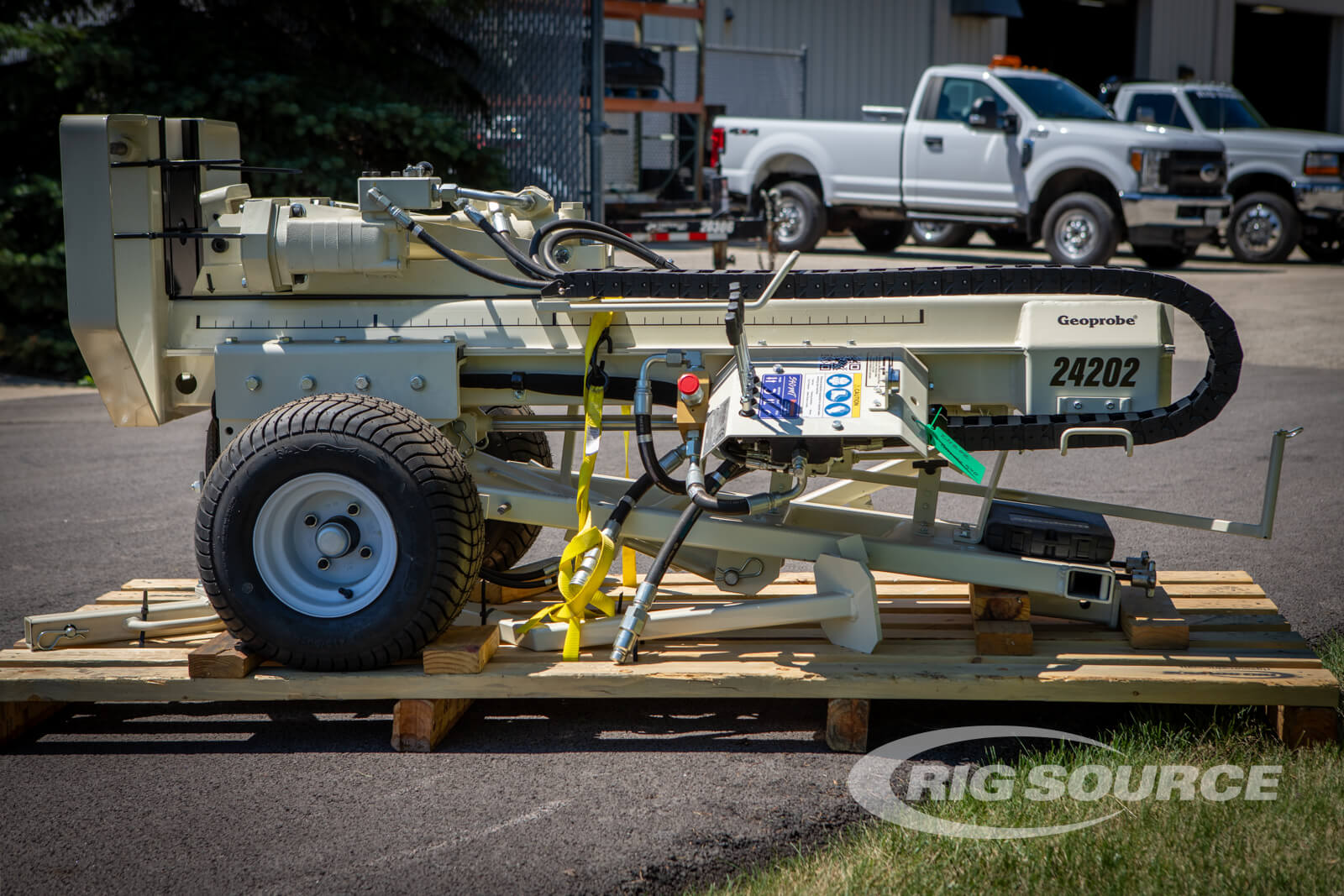

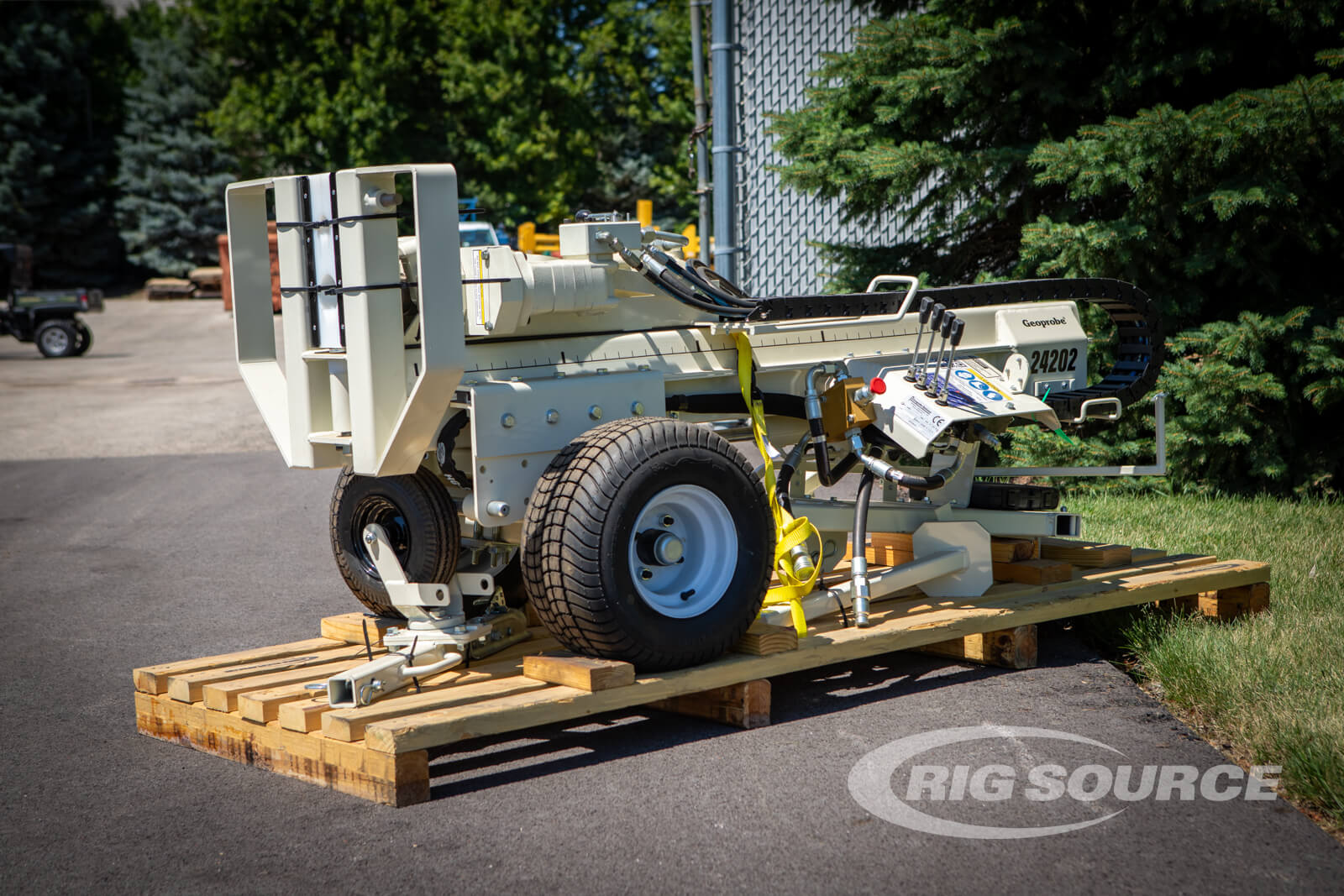

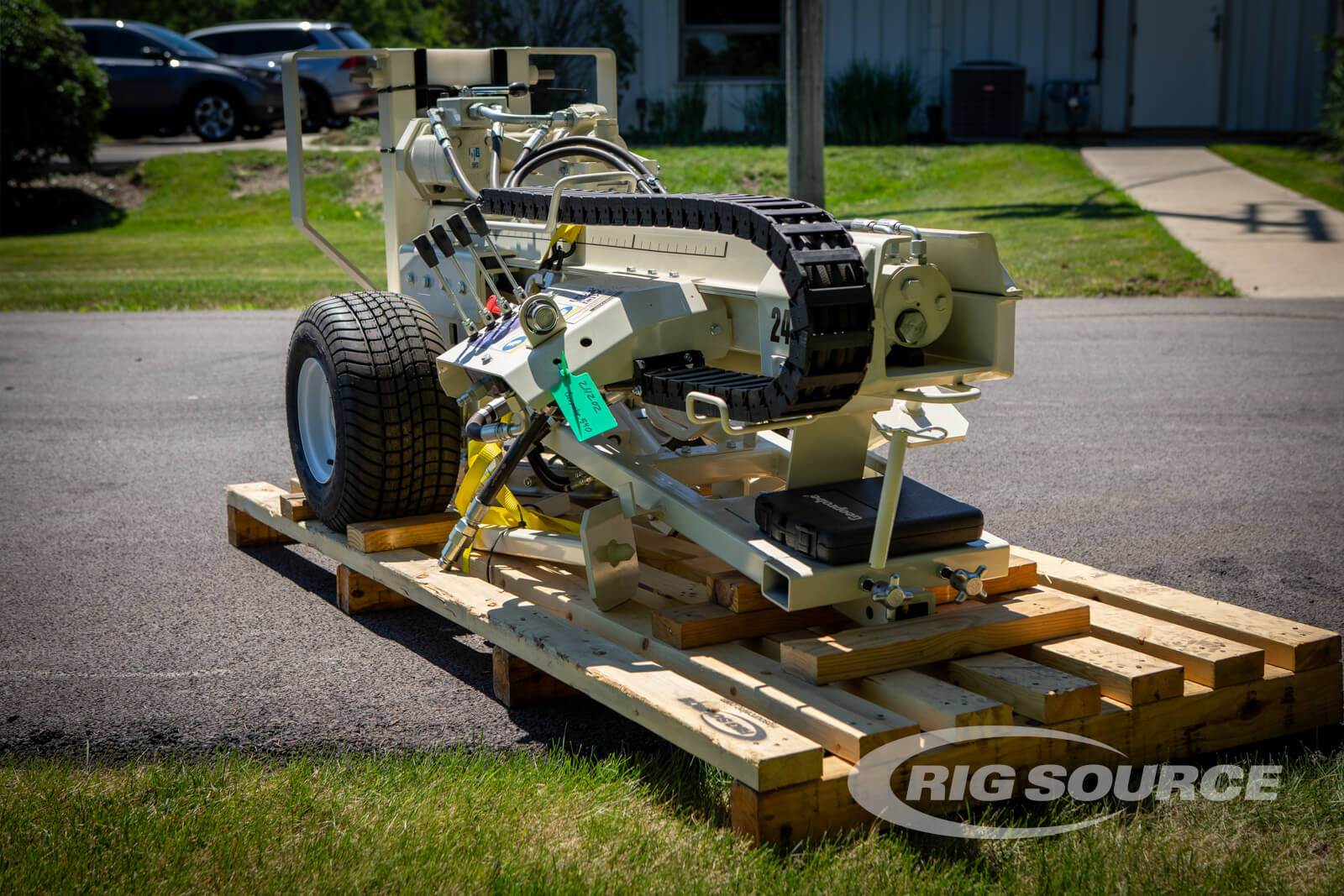

The Geoprobe 540MT is a cart-mounted limited-access direct push drill rig designed for low-clearance and tight-access work. Built for jobsites where larger rigs cannot easily operate, the 540MT offers dependable direct push power in a compact, mobile setup that can be maneuvered by two people. With its GH40 hammer system, 54-inch stroke, and remote hydraulic power source, this unit is well-suited for small direct push jobs, indoor work, and confined spaces.
Key Features
• Cart-mounted direct push drill rig designed for limited-access work
• Low folded height supports use in areas with low ceilings
• Mobile setup can be maneuvered by two people
• Bi-directional hammer rotation supports concrete drilling applications
• Remote hydraulic power source supports increased mobility
• Quick-connect hydraulic lines allow connection to a remote power unit
• Rear stabilization legs help stabilize the mobile cart during operation
Unit Specifications
• Year: 2024
• Stroke: 54 in
• Weight: 990 lbs
• Width: 35 in
• Length, Folded: 75 in
• Height, Folded: 29 in
• Height, Unfolded with Hammer Raised: 120 in
• Probe Cylinder Diameter: 4 in
• Down Force: 18,000 lbs
• Retraction Force: 25,000 lbs
• Hydraulic Pressure, System: 2,000 psi
• Hydraulic Flow Rate, System: 12 gpm
• Hammer System: GH40
• Percussion Rate: 30 Hz
• Hammer Motor Torque: 345 ft-lb
• Hammer Motor Rotation Rate: 125 rpm, bi-directional
Standard Features
• Remote hydraulic source connection
• Quick-connect hydraulic lines
• Cart-mounted frame
• Rear stabilization legs
• Limited-access configuration
• Designed for 48 in tooling compatibility
• Bi-directional hammer rotation for concrete drilling capability
Specifications are provided for general reference and may vary by unit configuration.
Interested in this Geoprobe 540MT? Contact Rig Source at (630) 365-1649 to confirm current availability, rental options, purchase options, pricing, and configuration details.
