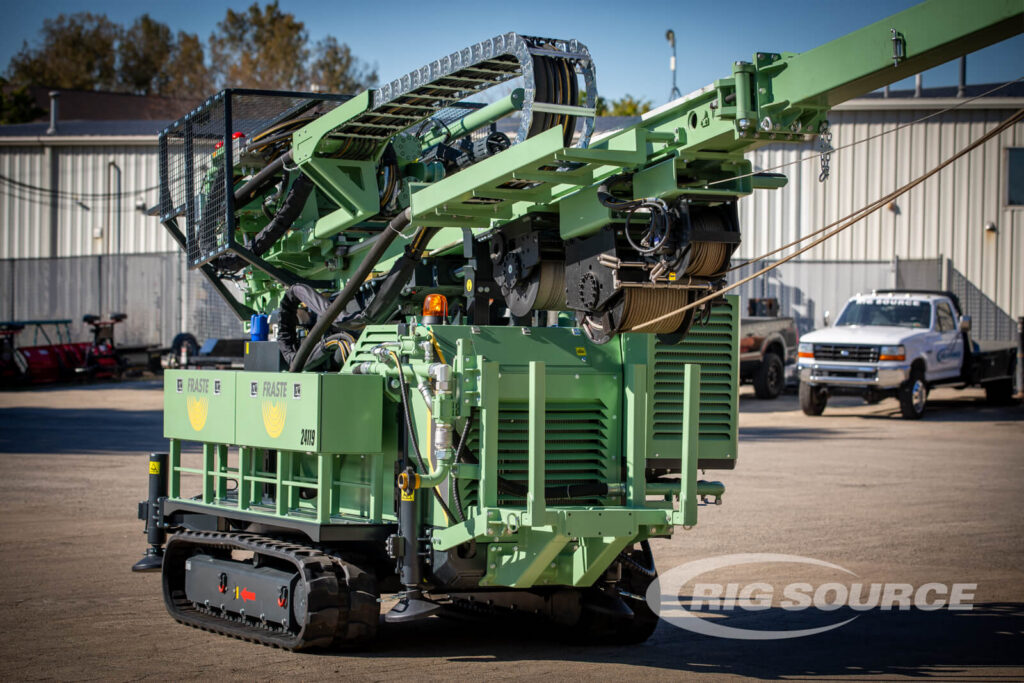

The Fraste Multidrill XL 140 is a compact, flexible, and powerful multidrill rig designed for contractors who need strong performance across demanding drilling applications. Built with a modular design, the XL 140 can be configured to support a wide range of drilling systems, including soil investigation, water well drilling, direct/reverse fluid circulation, and DTH hammer applications.
Key Features
• Compact and powerful multidrill rig with a strong performance-to-size ratio
• Modular design allows the rig to be adapted to multiple drilling systems
• Built for aggressive professional applications and challenging drilling conditions
• Supports soil investigation, water well drilling, and DTH hammer applications
• Equipped with radio remote control, winch package, hydraulic SPT hammer, and pump options
Unit Specifications
• Year: 2024
• Diesel Engine: CAT C4.4, 148 hp
• Emissions: Stage V, Tier 4F
• Rotary Head Stroke: 12.1 ft
• Pull-Up: 22,480 lbf
• Pull-Down: 15,287 lbf
• Max Rotary Head Torque: 11,506 ft-lb
• Max Rotary Head Speed: 910 rpm
• Clamp Diameter: 2.3 – 11 in
• Weight: 26,455 lbs
• Tower Height: 32 ft
• Dimensions, Stowed: 24 ft L x 6.6 ft W x 10.3 ft H
Standard Features
• Main Winch: 11,000 lbf, 115 ft/min
• Tool Winch: 4,500 lbf, 180 ft/min
• Wire Line Winch: 1,350 lbf, 425 ft/min
• 3L8 Progressive Cavity Pump: 100 gpm, 225 psi
• Triplex Pump: 43 gpm, 1,015 psi
• Hydraulic SPT Device: 30″, 140 lbf
• Radio remote control
• Hydraulic air valve
• Mast extension
Specifications are provided for general reference and may vary by unit configuration.
Interested in this Fraste XL 140? Contact Rig Source at (630) 365-1649 to confirm current availability, rental options, purchase options, pricing, and configuration details.
