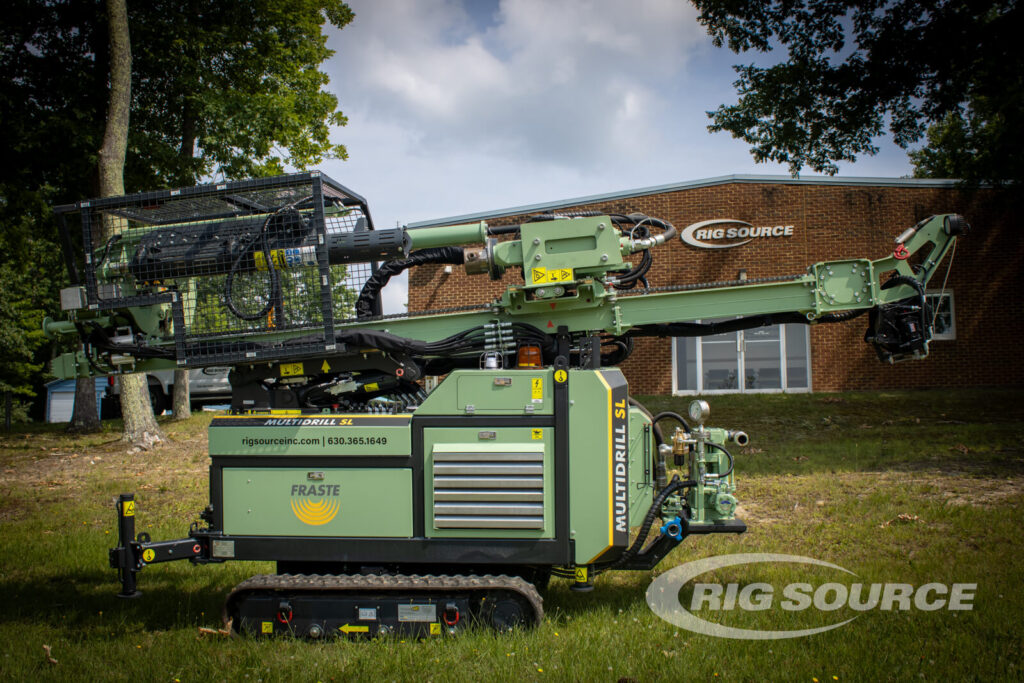

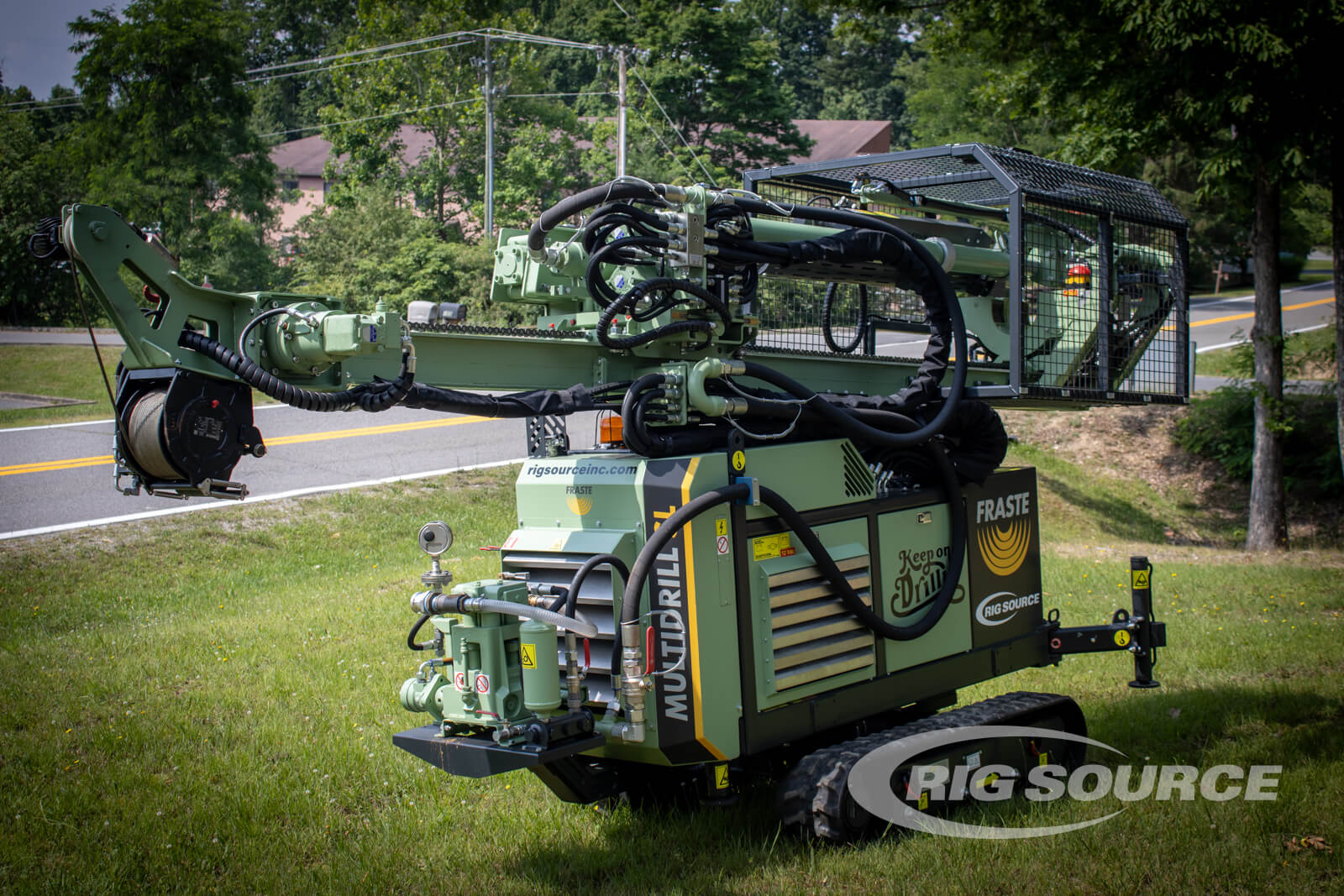

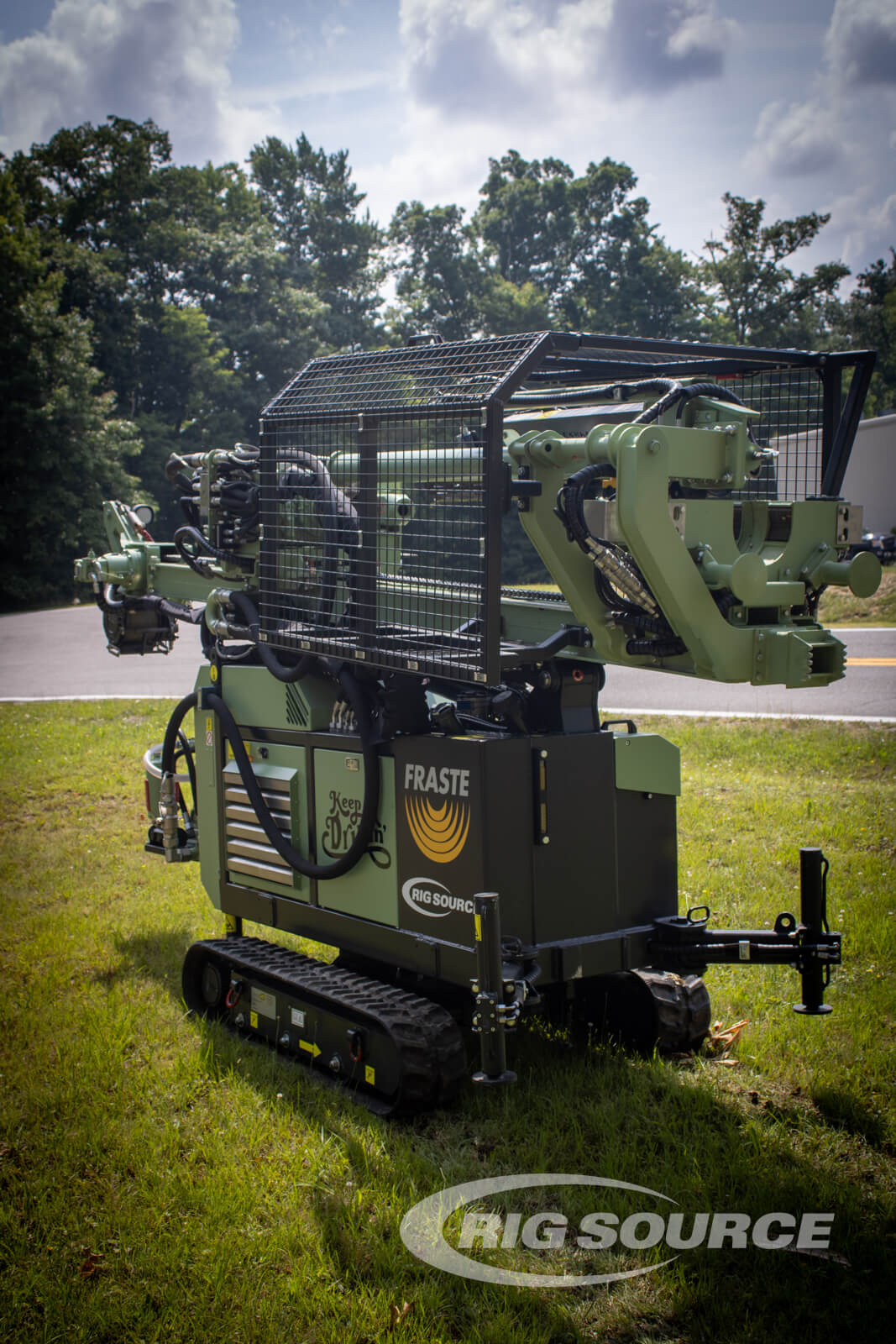

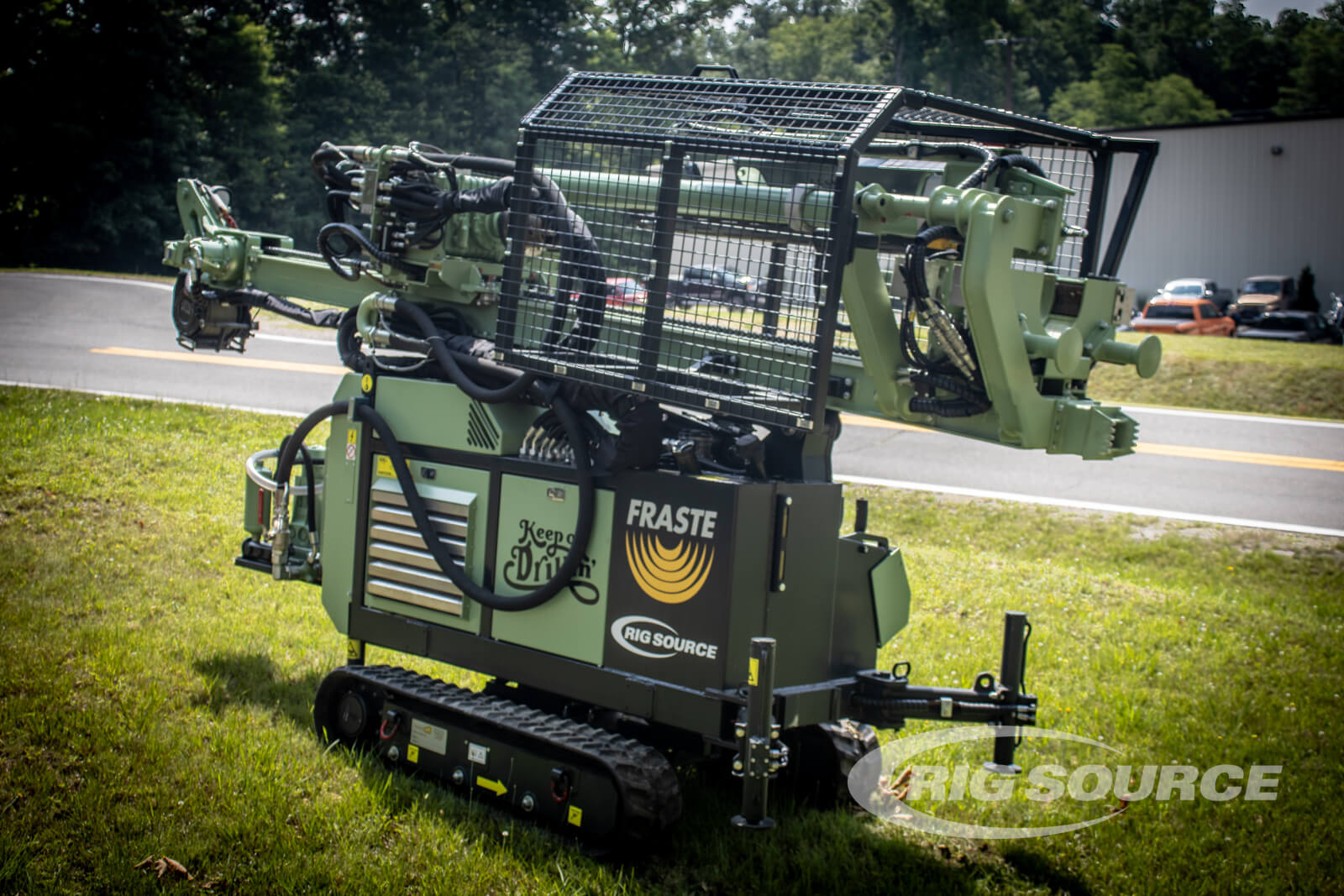

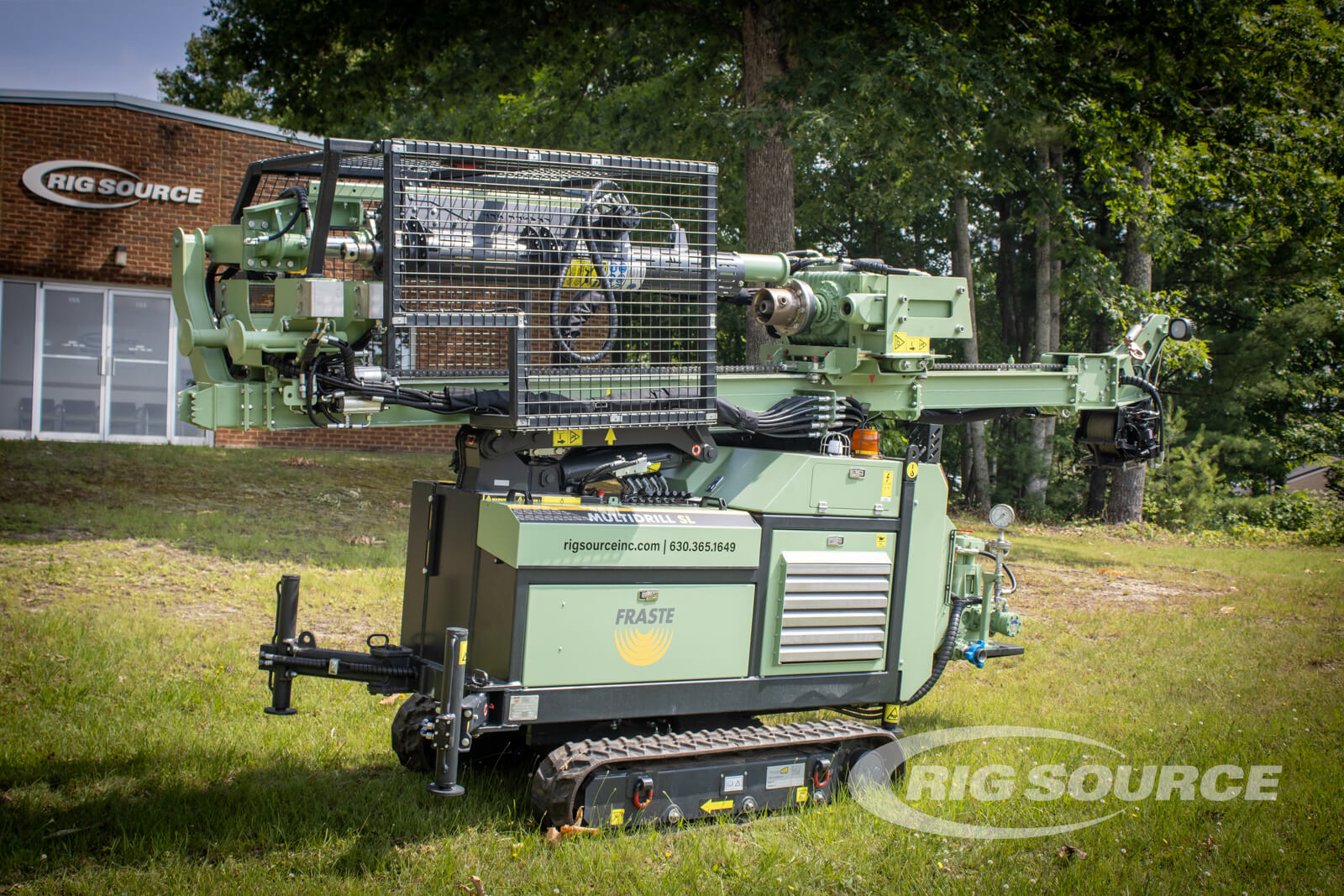

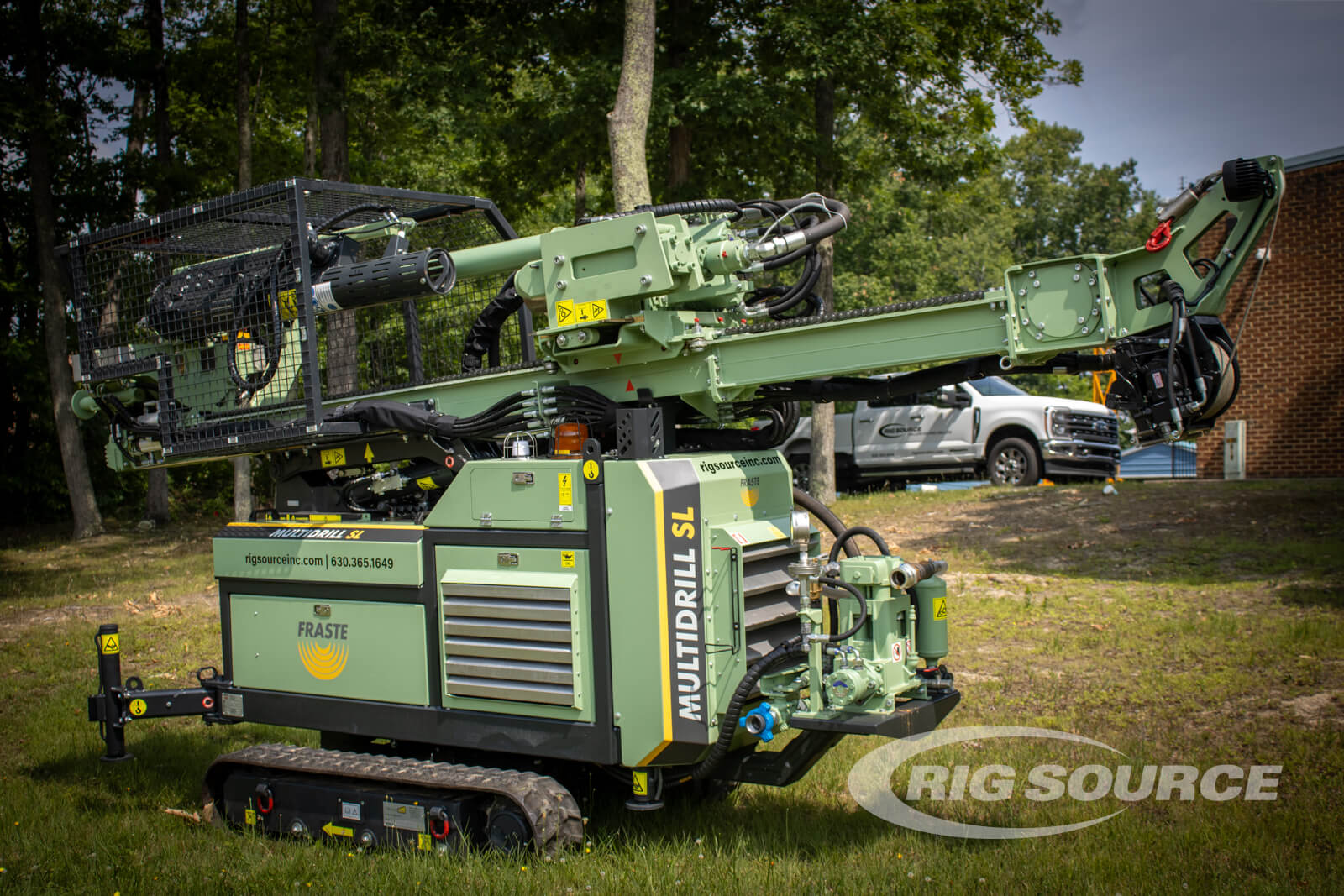

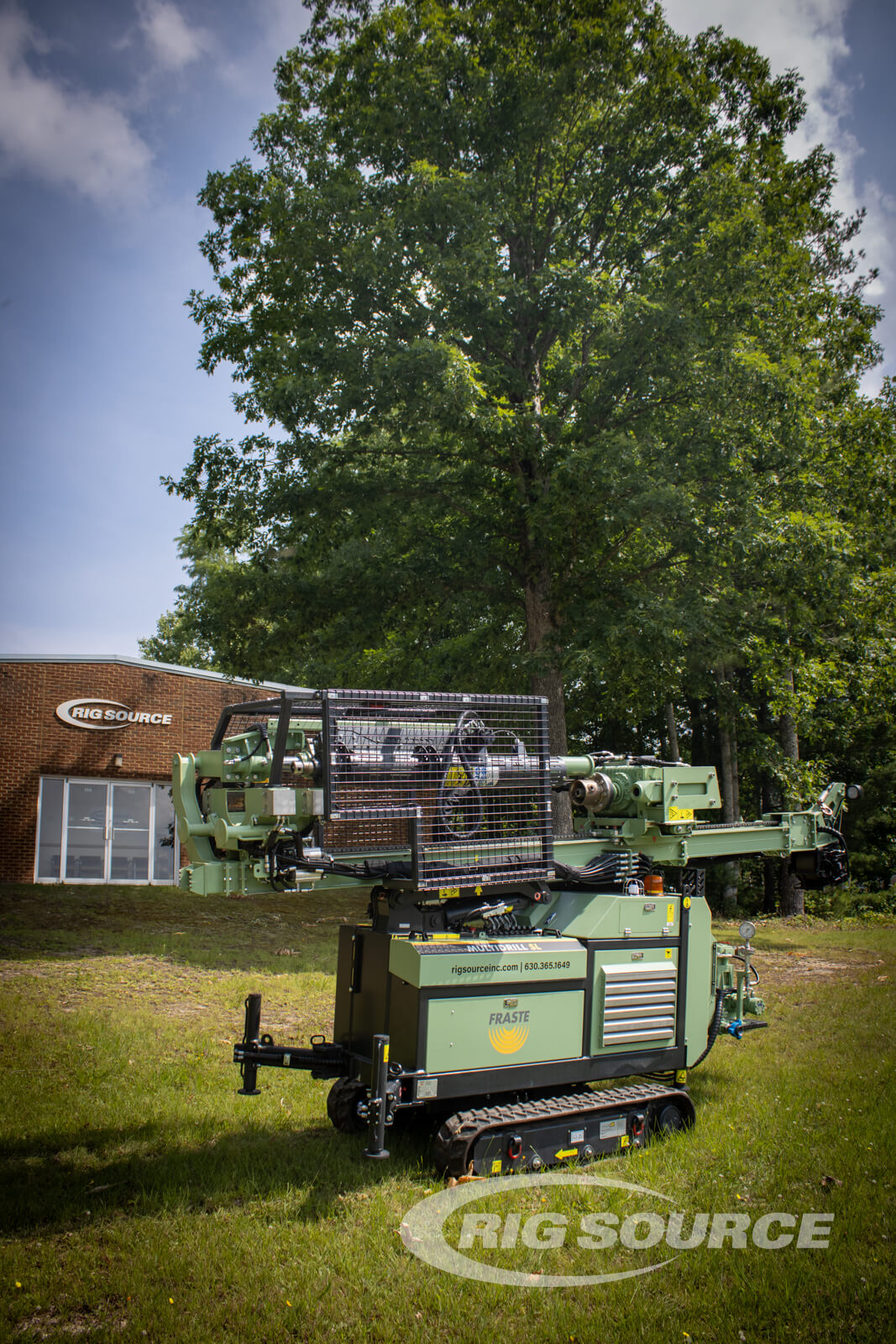

The Fraste Multidrill SL is a compact geotechnical drilling rig designed for contractors who need reliable performance in tight-access and small-site applications. Pocket-sized but productive, the SL offers the quality and capability of a larger drilling rig while maintaining a narrow footprint for improved maneuverability.
Key Features
• Compact Fraste multidrill rig designed for tight-access drilling applications
• Small footprint supports maneuverability on limited-access jobsites
• Built for soil investigation, environmental monitoring, and small-size water well applications
• Modular mast design provides flexibility for different drilling requirements
• Equipped with radio remote control, hydraulic SPT hammer, and mast extension
Unit Specifications
• Year: 2024
• Diesel Engine: CAT C1.7, 48 hp
• Emissions: Stage V, Tier 4F, non-DEF
• Rotary Head Stroke: 5.9 – 9.2 ft
• Pull-Up: 5,620 lbf
• Pull-Down: 5,620 lbf
• Max Rotary Head Torque: 3,319 ft-lb
• Max Rotary Head Speed: 900 rpm
• Clamp Diameter: 1.9 – 8.3 in
• Weight: 6,613 lbs
• Tower Height: 16.7 ft
• Dimensions, Stowed: 16.2 ft L x 4 ft W x 7.5 ft H
Standard Features
• Main Winch: 2,250 lbf, 110 ft/min
• Quadraplex Piston Pump: 21 gpm, 580 psi
• Hydraulic SPT Device: 30″, 140 lbf
• Hydraulic percussion hammer for direct push sampling
• Radio remote control
• Hydraulic air valve
• Mast extension
Specifications are provided for general reference and may vary by unit configuration.
Interested in this Fraste Multidrill SL? Contact Rig Source at (630) 365-1649 to confirm current availability, rental options, purchase options, pricing, and configuration details.
