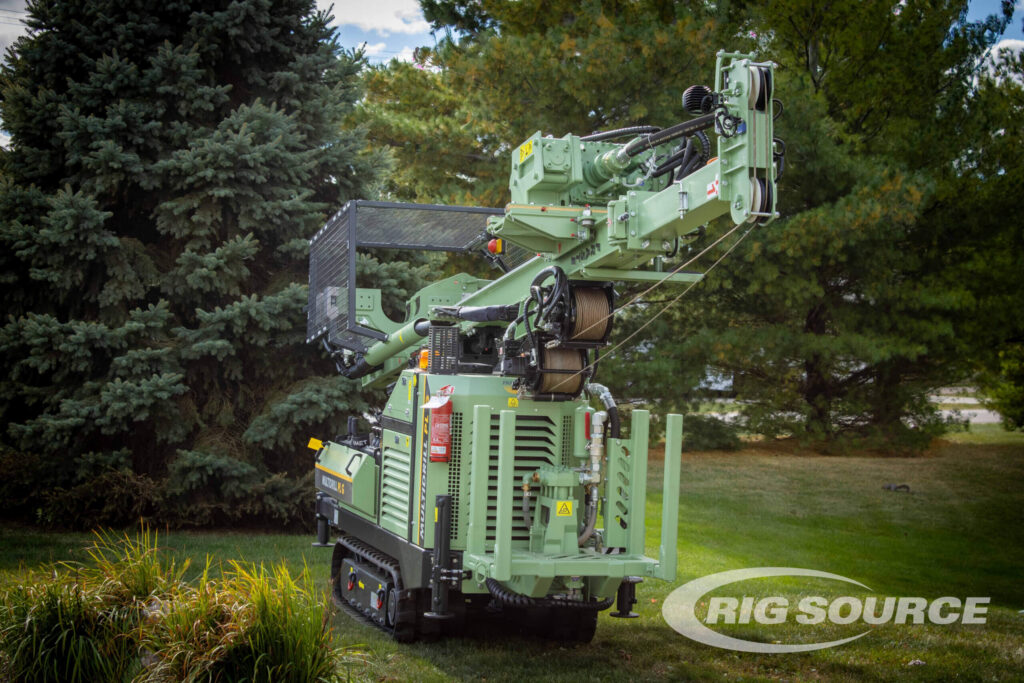

The Fraste Multidrill PL G is a compact, lowered geotechnical drill rig designed for work in confined spaces, limited-access areas, and inside buildings. Agile and powerful for its size, the PL G is well-suited for foundations, micropiles, geotechnical drilling, and survey work where access and maneuverability are important.
Key Features
• Compact and agile Fraste Multidrill PL G rig designed for confined spaces
• Lowered rig design supports limited-access and indoor drilling applications
• Strong hydraulic system provides balanced power distribution for field performance
• Well-suited for foundations, micropiles, geotechnical drilling, and survey work
Unit Specifications
• Year: 2024
• Diesel Engine: CAT C2.2, 74 hp
• Emissions: Stage V, Tier 4F, non-DEF
• Rotary Head Stroke: 11.5 ft
• Pull-Up: 8,992 lbf
• Pull-Down: 8,992 lbf
• Max Rotary Head Torque: 4,204 ft-lb
• Max Rotary Head Speed: 1,000 rpm
• Clamp Diameter: 1.6 – 9.9 in
• Weight: 11,023 lbs
• Tower Height: 22.6 ft
• Dimensions, Stowed: 17.9 ft L x 6.6 ft W x 8.7 ft H
Standard Features
• Main Winch: 2,250 lbf, 165 ft/min
• Wire Line Winch: 2,800 lbf, 360 ft/min
• Triplex Pump: 40 gpm, 435 psi
• Hydraulic SPT Device: 30″, 140 lbf
• Hydraulic percussion hammer for direct push sampling
• Push sampling
• Remote radio control
• Hydraulic air valve
Specifications are provided for general reference and may vary by unit configuration.
Interested in this Fraste Multidrill PL G? Contact Rig Source at (630) 365-1649 to confirm current availability, rental options, purchase options, pricing, and configuration details.
