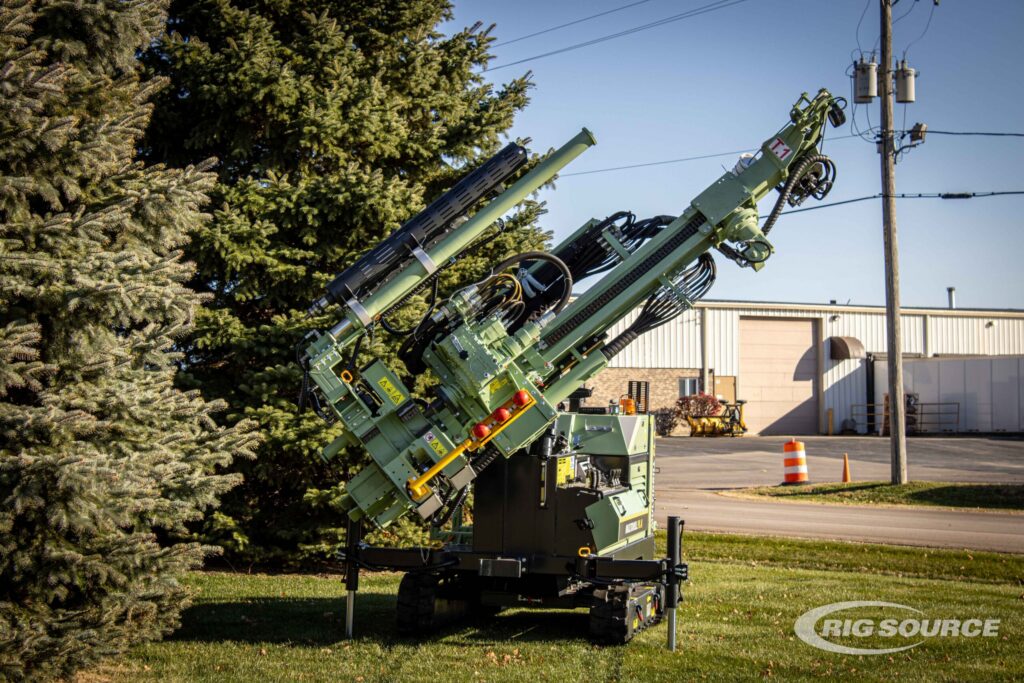

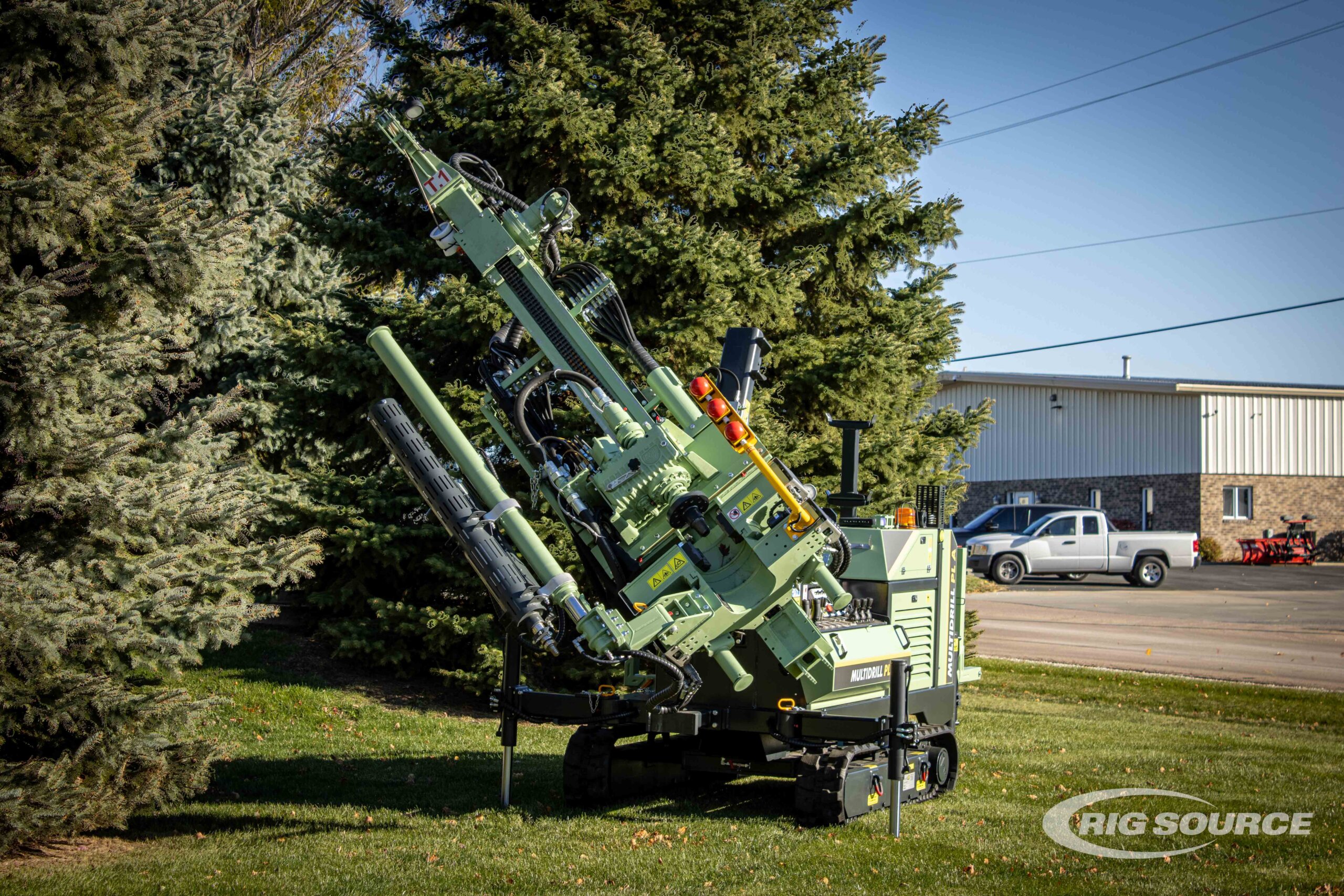

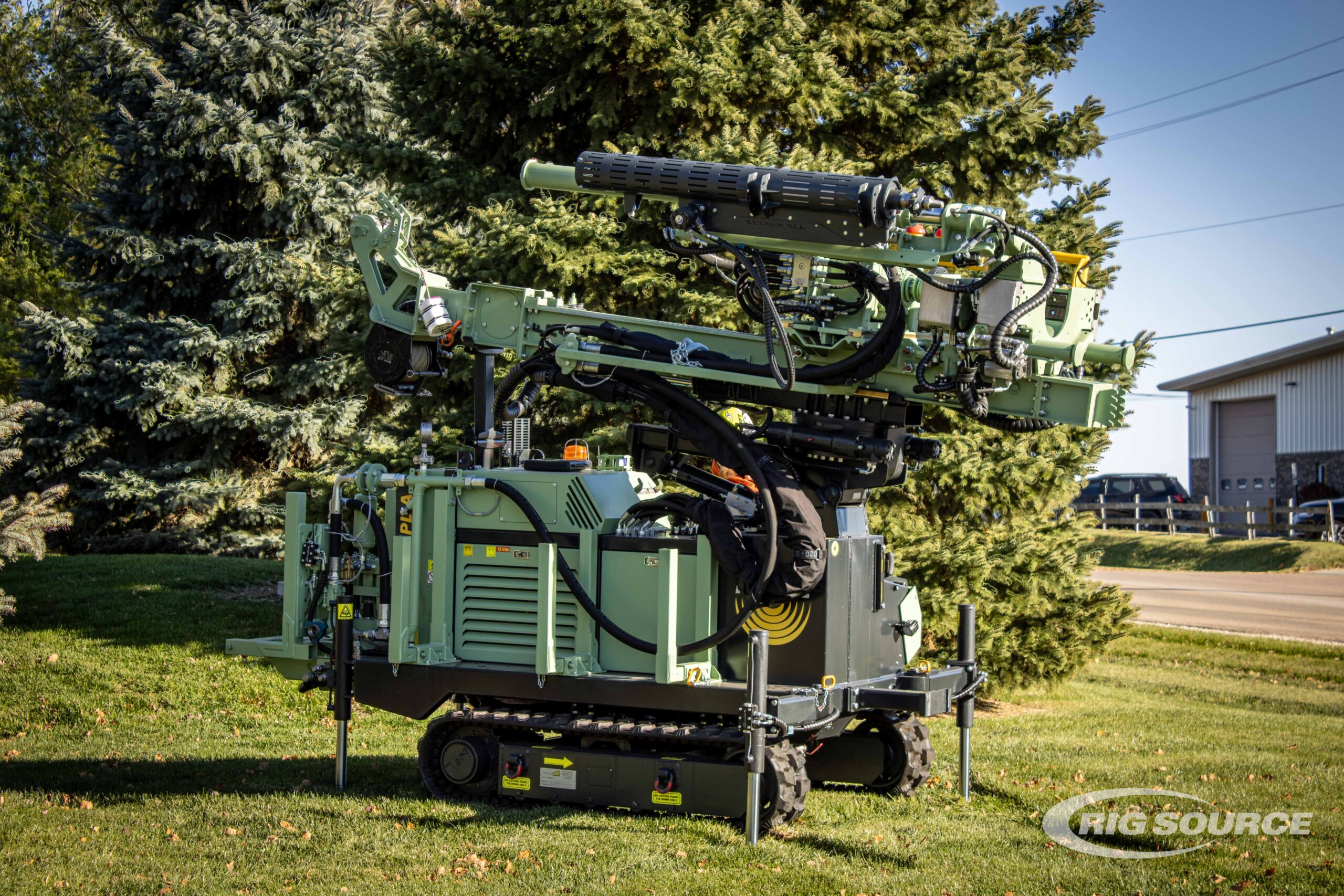

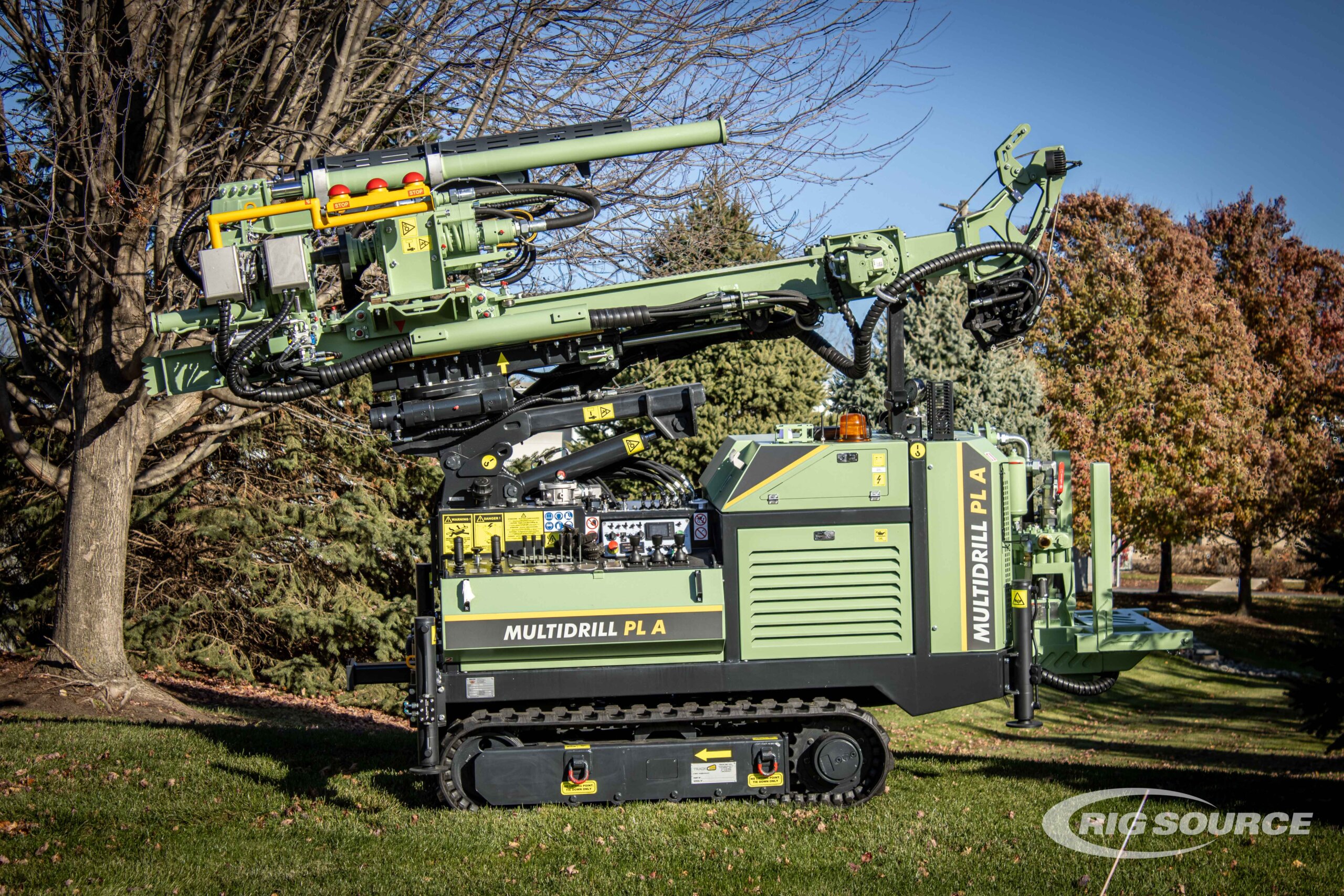

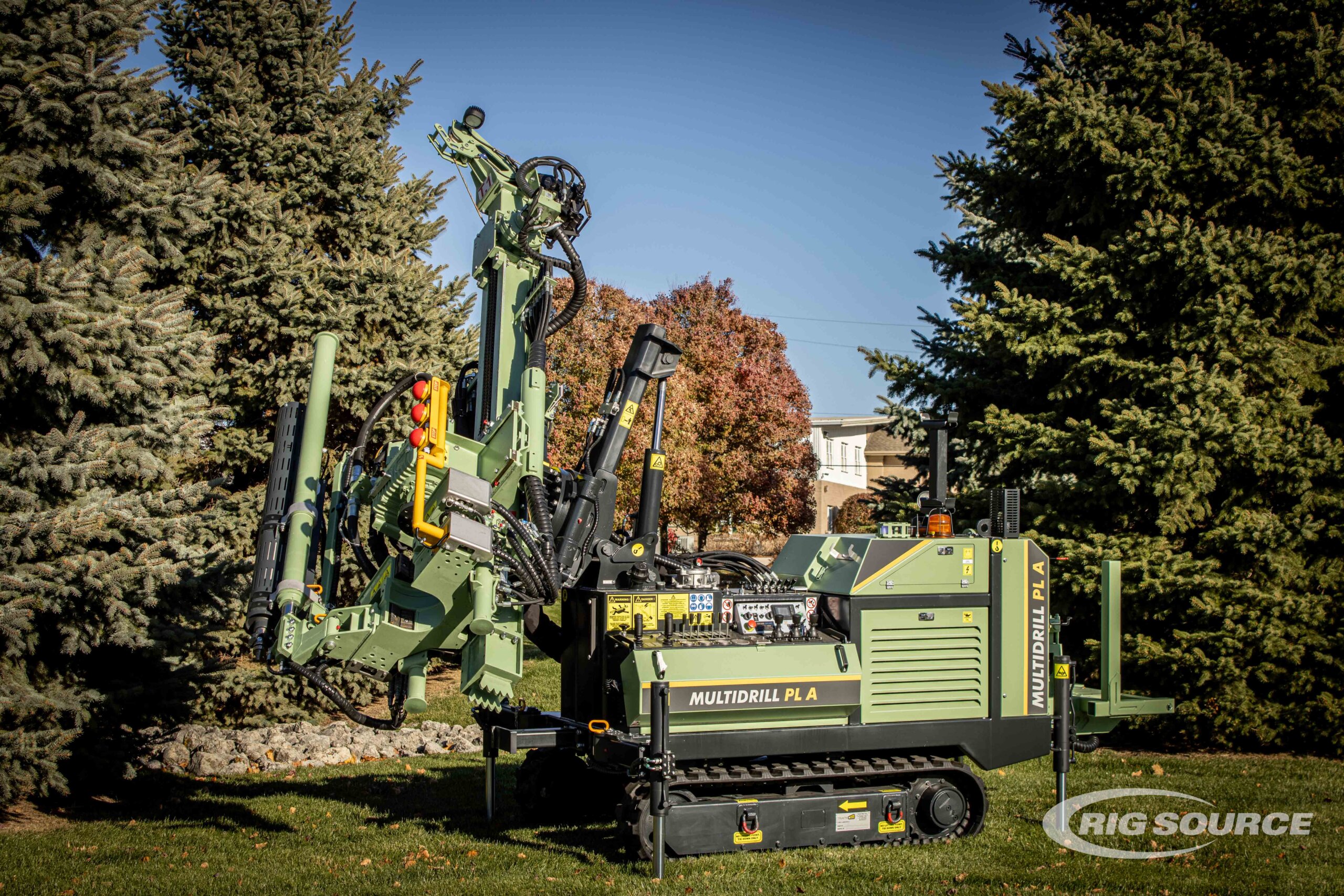

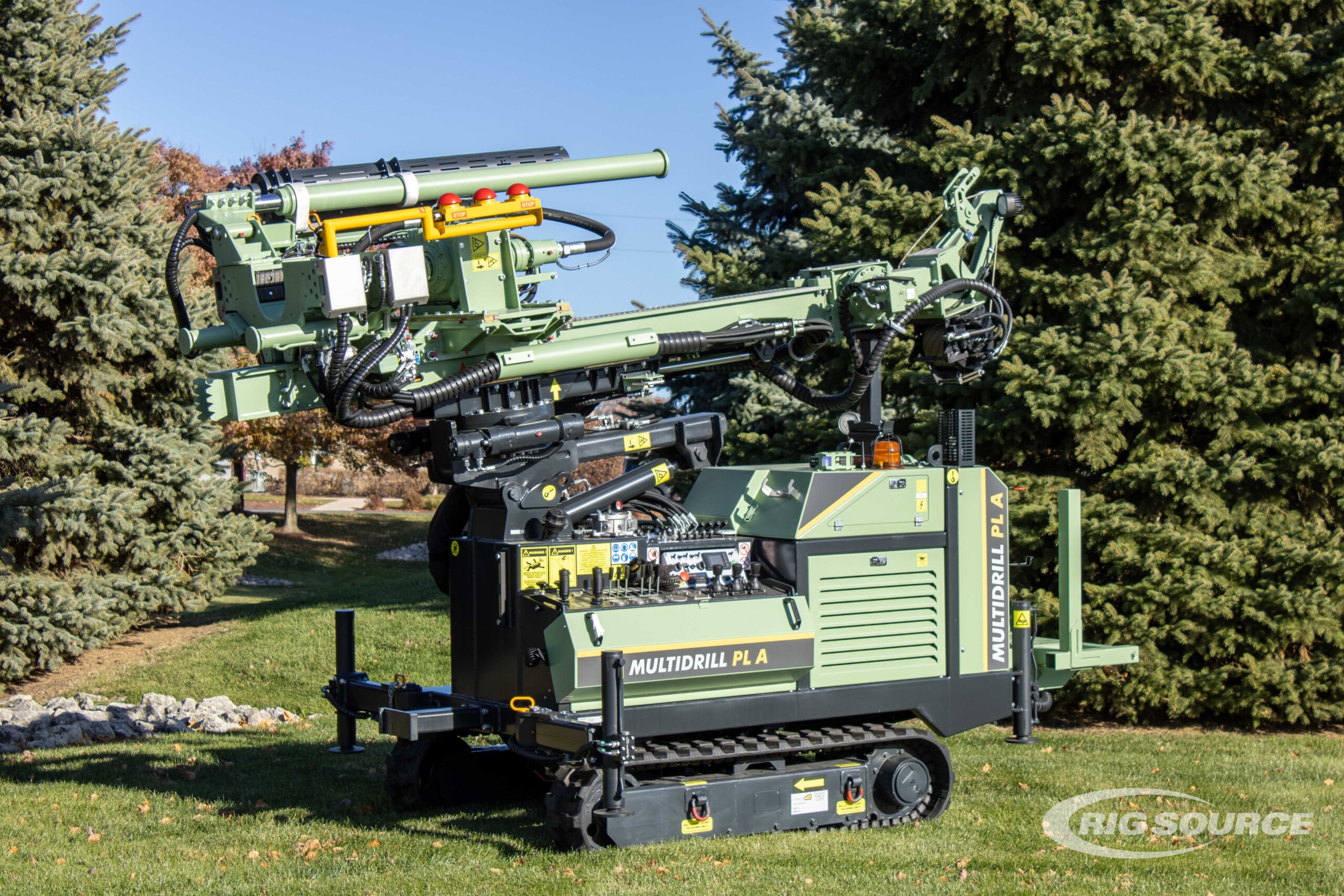

The Fraste Multidrill PL A is a compact, lowered geotechnical drilling rig designed for contractors working in confined spaces, limited-access areas, and challenging job-site conditions. Built for the challenges of geotechnical drilling applications, the PL A offers specialized features to support performance in the field while maintaining a compact footprint.
Key Features
• Compact and lowered Fraste Multidrill PL A rig designed for confined and limited-access work
• Built for geotechnical drilling, foundations, micropiles, and survey applications
• Modular design allows the rig to be adapted to specific jobsite requirements
• Strong hydraulic system provides balanced power distribution for field performance
• Equipped with radio remote control, hydraulic SPT hammer, push sampling, mast extension, and hydraulic air valve
Unit Specifications
• Year: 2024
• Diesel Engine: CAT C2.2, 74 hp
• Emissions: Stage V, Tier 4F
• Rotary Head Stroke: 5.7 ft including kit mast extension
• Pull-Up: 8,992 lbf
• Pull-Down: 8,992 lbf
• Max Rotary Head Torque: 2,065 ft-lb
• Max Rotary Head Speed: 800 rpm
• Clamp Diameter: 1.6 – 9.8 in
• Weight: 9,479 lbs
• Tower Height: 12.5 ft
• Dimensions, Stowed: 14.5 ft L x 3.6 ft W x 8.9 ft H
Standard Features
• Main Winch: 2,248 lbf, 164 ft/min
• Bean/FMC L06 Triplex Piston Pump: 40 gpm, 435 psi
• Hydraulic SPT Device: 30″, 142 lbf
• Push sampling
• Mast extension
• Hydraulic air valve
• Radio remote control
Specifications are provided for general reference and may vary by unit configuration.
Interested in this Fraste Multidrill PL A? Contact Rig Source at (630) 365-1649 to confirm current availability, rental options, purchase options, pricing, and configuration details.
