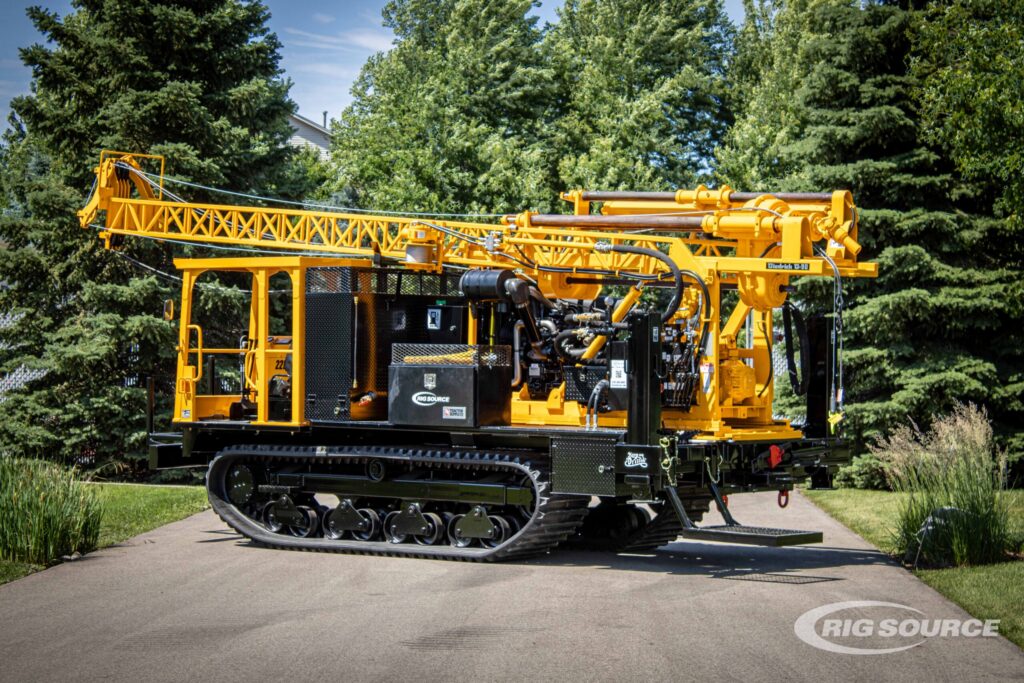

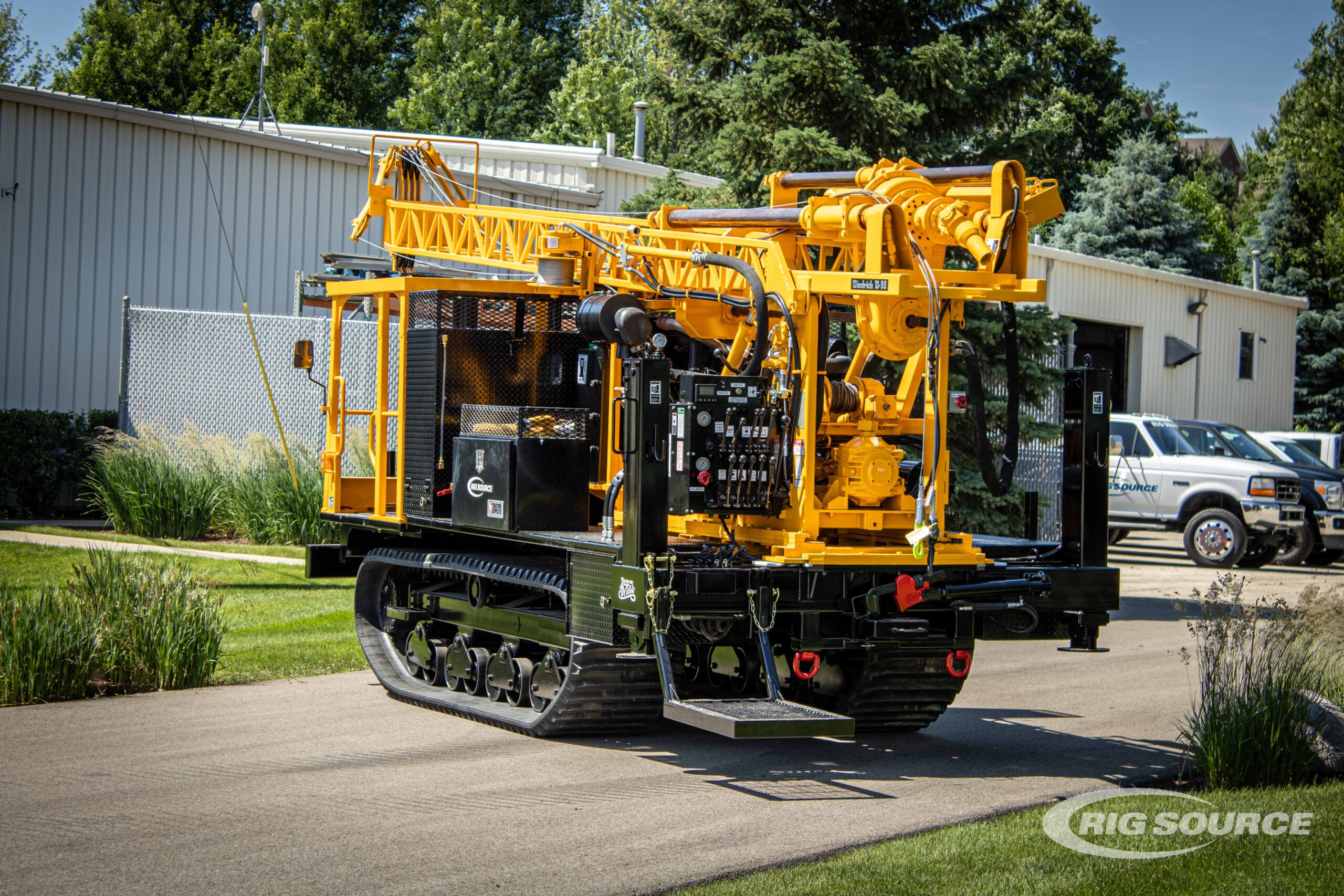

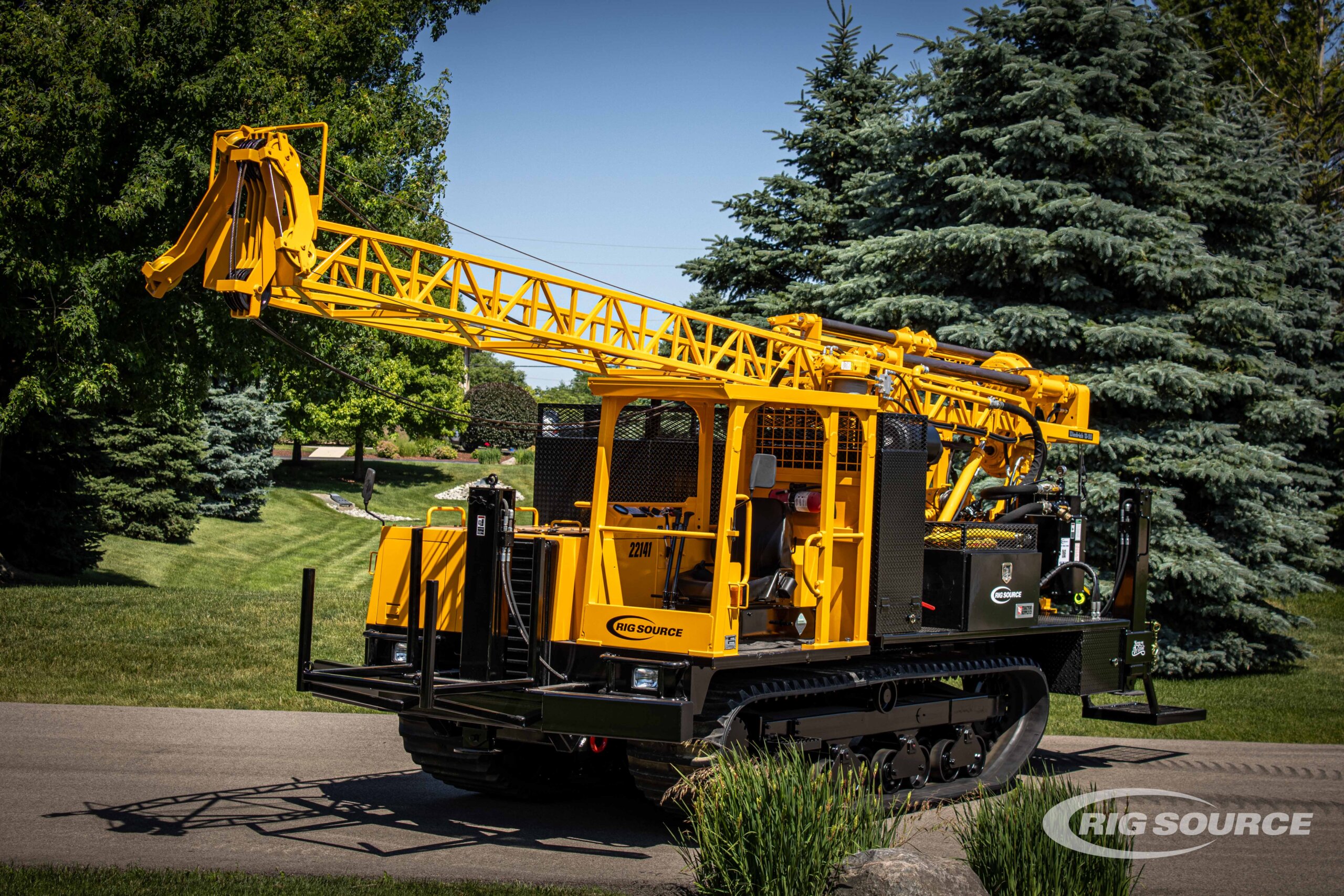

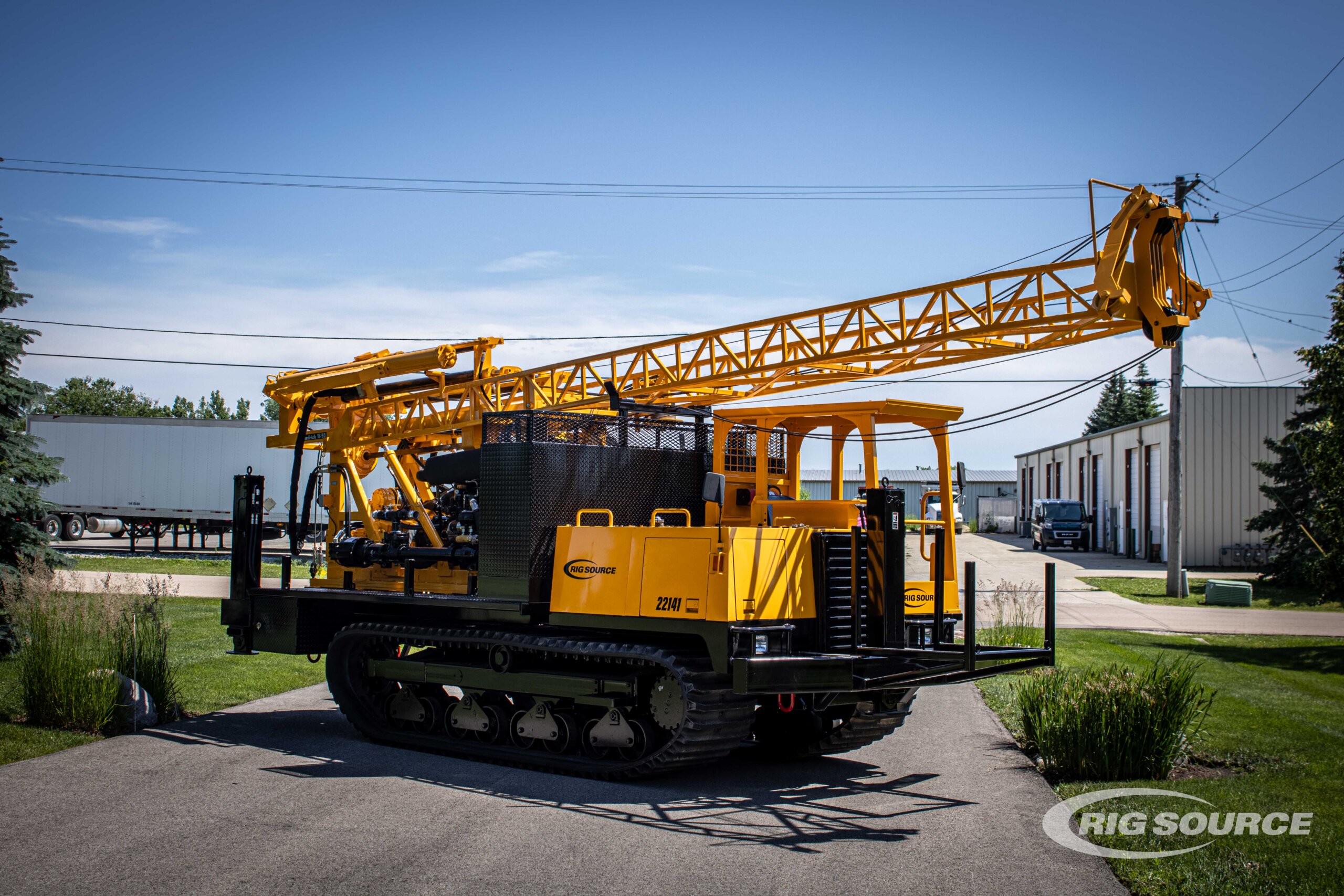

The Diedrich D90 on IHI IC-50 is a track-mounted drill rig designed for geotechnical, environmental, and exploration drilling applications. Mounted on an IHI IC-50 crawler carrier, this D90 configuration combines heavy-duty track mobility, a 24 ft mast, hydraulic winch package, onboard water system, and SPT sampling support. With a remanned engine completed in 2025, this unit is configured for contractors needing a rugged drilling platform for demanding field conditions.
Key Features
• Track-mounted Diedrich D90 drill rig designed for rugged field conditions
• IHI IC-50 crawler carrier supports jobsite mobility and access
• Configured for geotechnical, environmental, and exploration drilling applications
• 24 ft mast supports drilling production and tooling flexibility
• Onboard water system supports drilling operations in the field
• Hydraulic winches support tooling, wireline, and drilling support needs
• Equipped for SPT sampling, rod handling, casing support, and water delivery applications
Unit Specifications
• Year: 1995 D 90 / 2017 IHI IC 50
• Engine Note: 2025 remanned engine

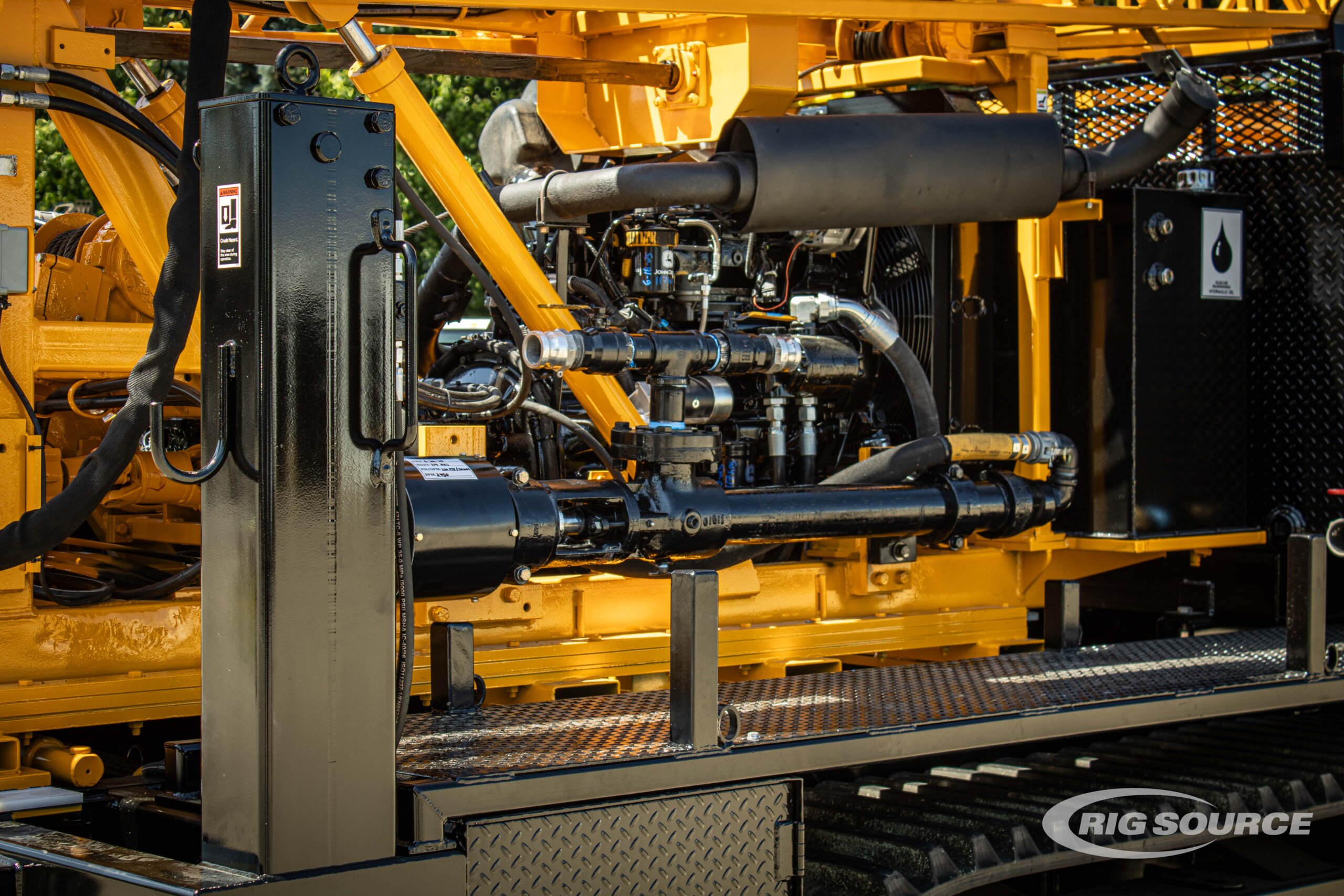

• Engine: John Deere 4-cylinder
• Emissions: Tier 2
• Transmission: Eaton 5-speed transmission
• Carrier: IHI IC-50 crawler carrier
• Tracks: Heavy-duty reinforced rubber tracks
• Hydraulic Drive: Tandem hydrostatic drive pump
• Mast: 24 ft mast
• Water Tank: 200-gallon steel tank
• Paint Color: RAL Yellow
• Platform and Components Color: Black

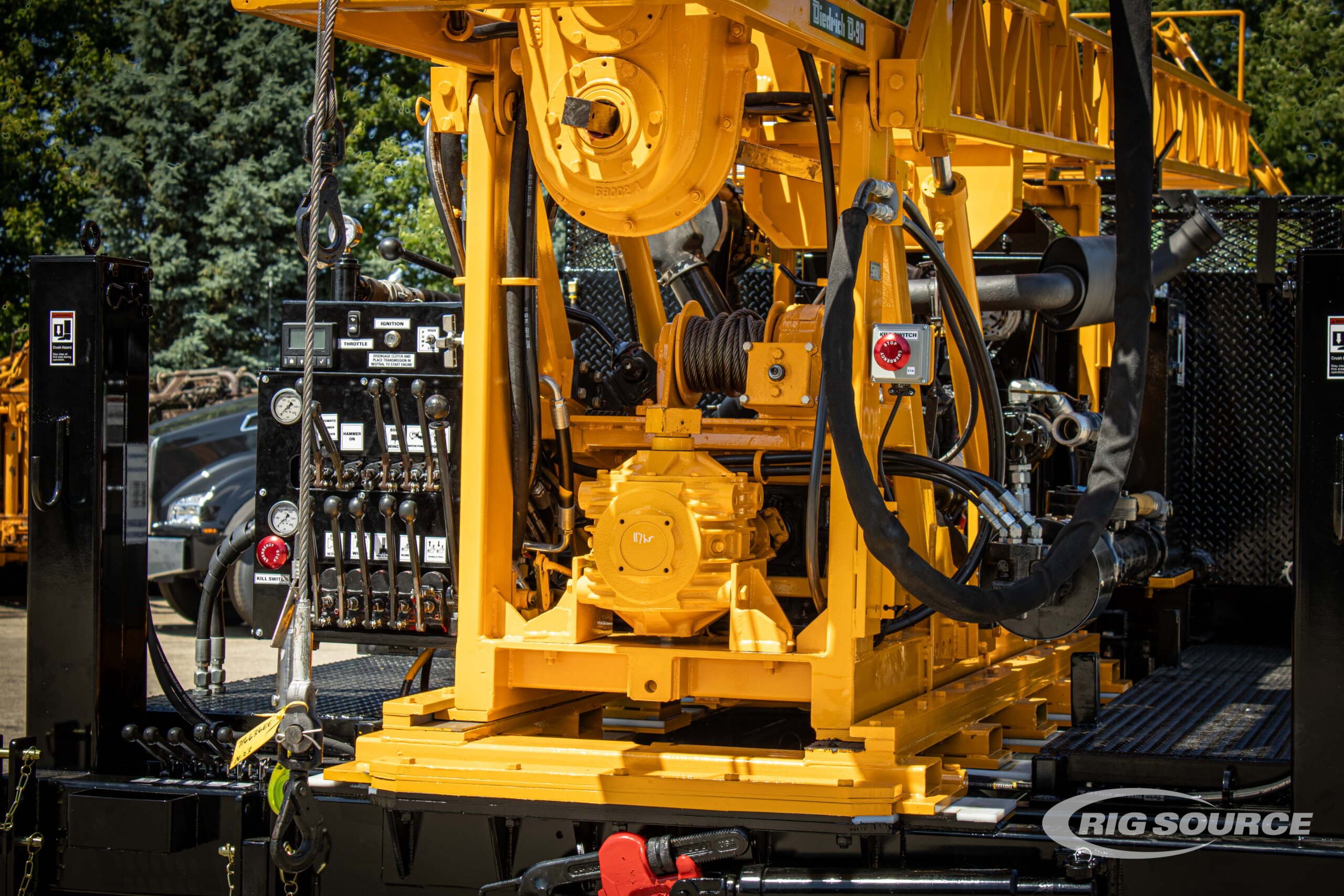

Drill Mast & Positioning
• Mast quick disconnect
• Three heavy-duty 36 in stroke leveling jacks
• In-out slide base
• Side-to-side slide
• Detented feed with rapid retract
• Split bushings on feed cylinders, quick-change
• Driller step
Winch Package
• 3,000 lb hydraulic winch with brake
• 7,000 lb hydraulic winch with brake
• Hydraulic wireline winch
• Overshot assembly for wireline
Water System
• 3L6 water pump assembly
• 2J water swivel
• Water manifold system with standpipe
Rod Handling & Breakout
• Breakout table
• Hydraulic rod holder
• Breakout wrench, NW rod to 6 in casing
• Upper spindle adapter, 4-1/4 in box / NWJ
• Lower spindle adapter, 4-1/4 in pin / U-joint / 2 in hex
Standard Features
• Body fabrication with front auger rack
• Above-deck 3 ft toolbox
• Automatic SPT hammer, side cylinder mount
• 2 underdeck toolboxes
• 10 ft rod storage on platform
• Top basket and rod storage
Specifications are provided for general reference and may vary by unit configuration.
Interested in this Diedrich D90 on IHI IC-50? Contact Rig Source at (630) 365-1649 to confirm current availability, pricing, configuration details, and transport requirements.
