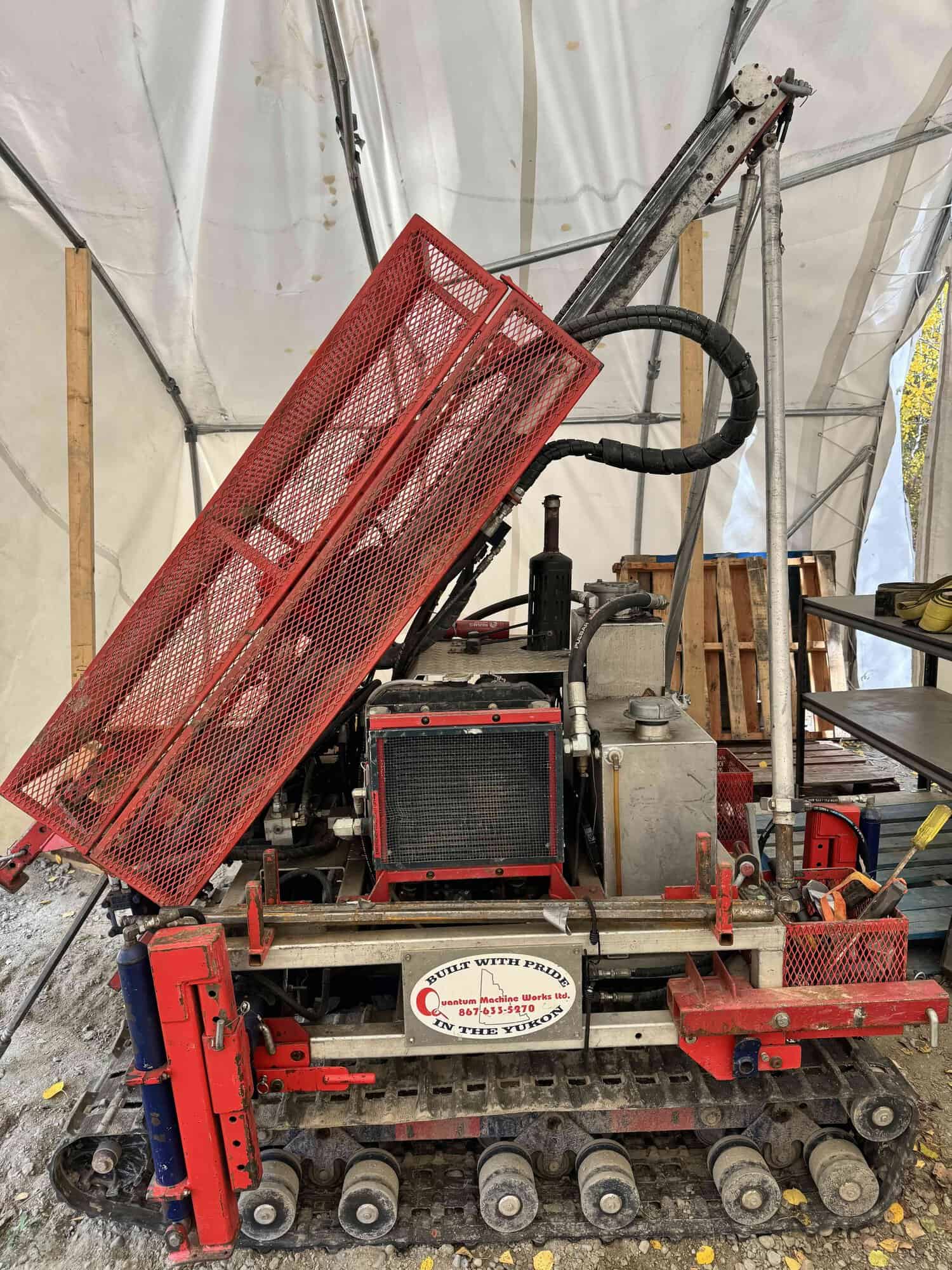

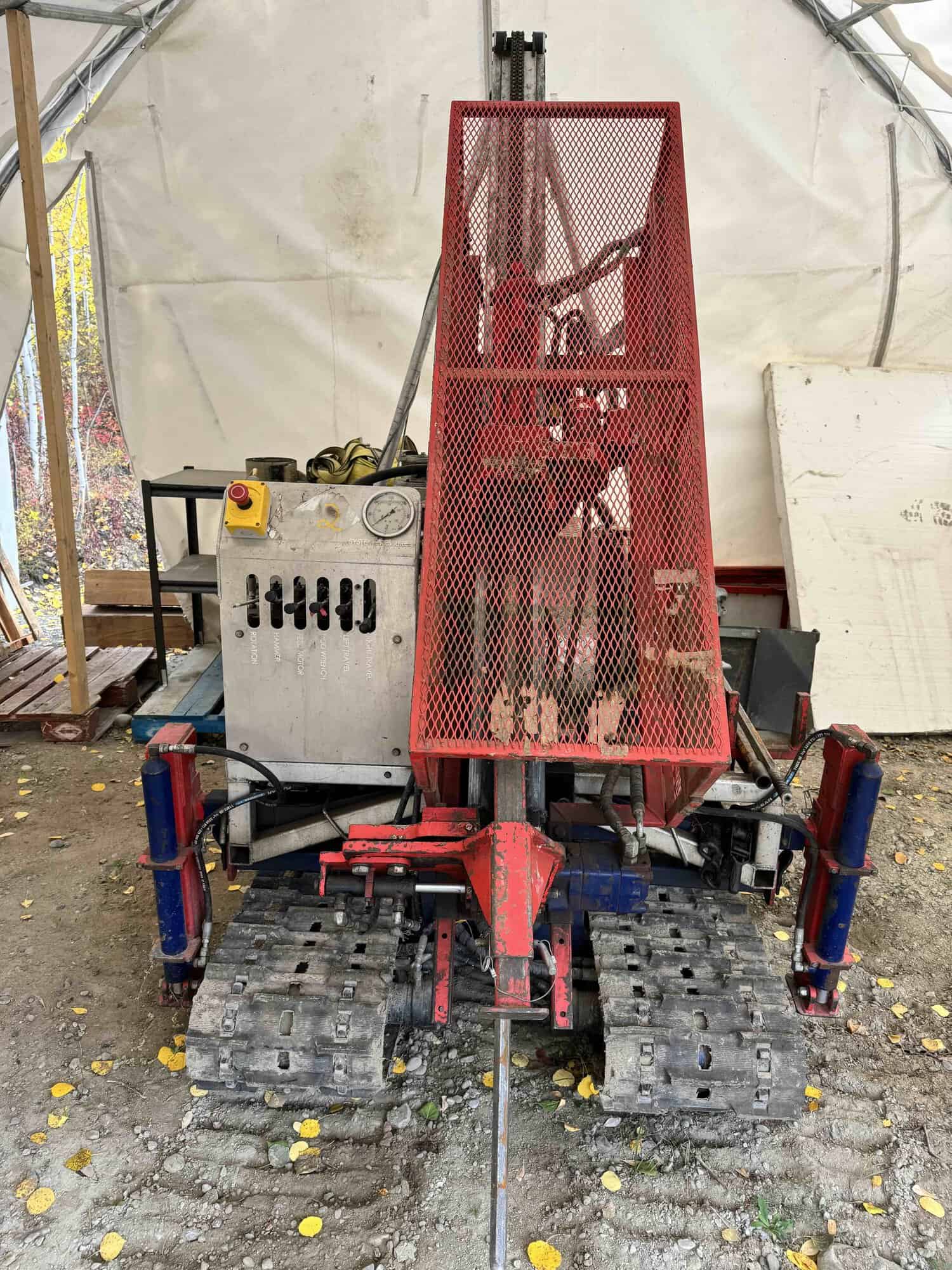

2023 Quantum Machine Works QLD ShockAuger
Unit is in very good shape except for paint chips. Was used on several mineral exploration programs for deep till sampling. Developed based on a US Geological Survey prototype.
- Helicopter Portable Tracked Drill
- Quantum Machine Works QLD modular platform
- Rotary-percussive Geoprobe head using standard R-25 LH rods
- 2,200lbs total weight, 1,700lbs without tracks

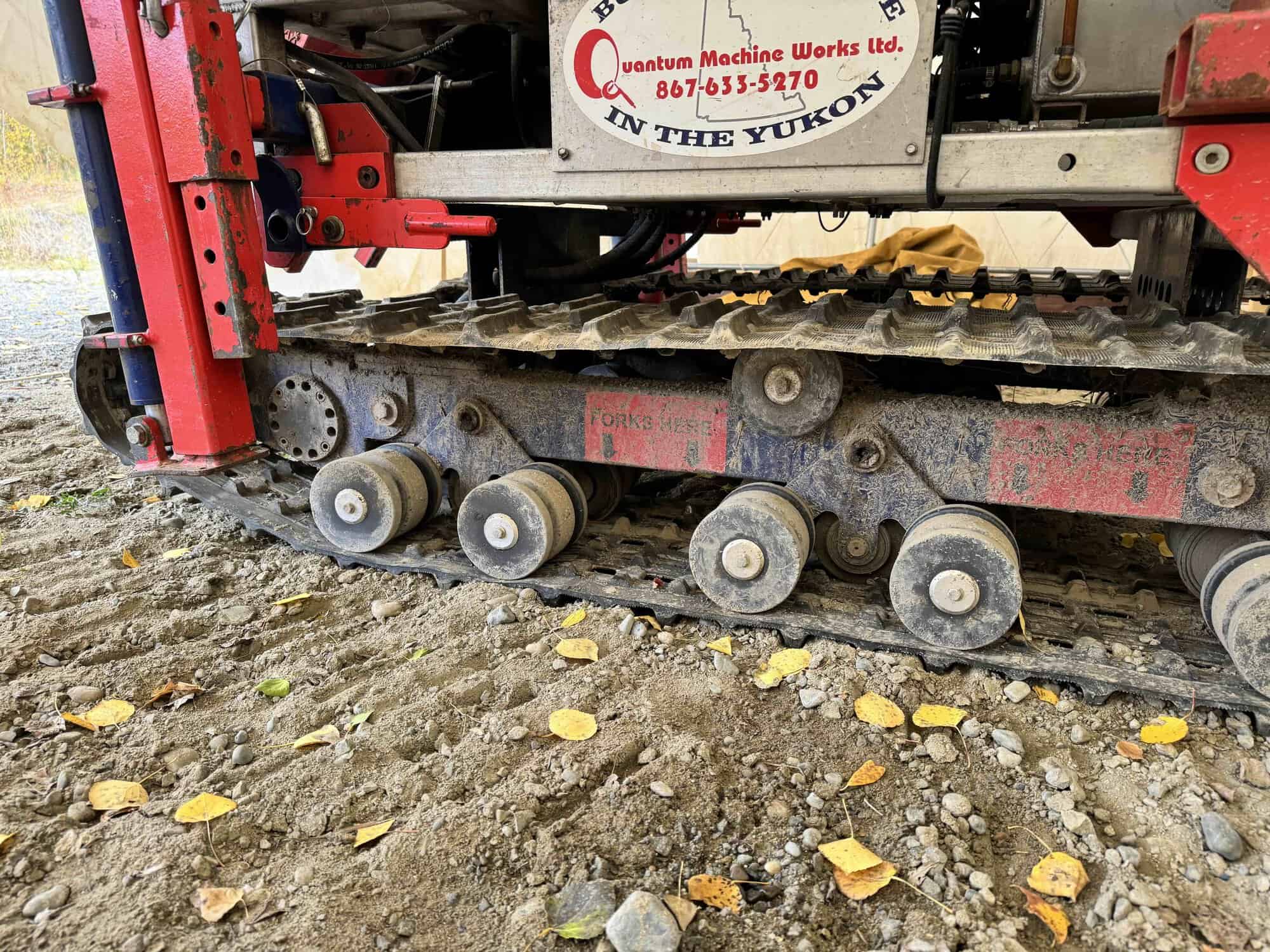

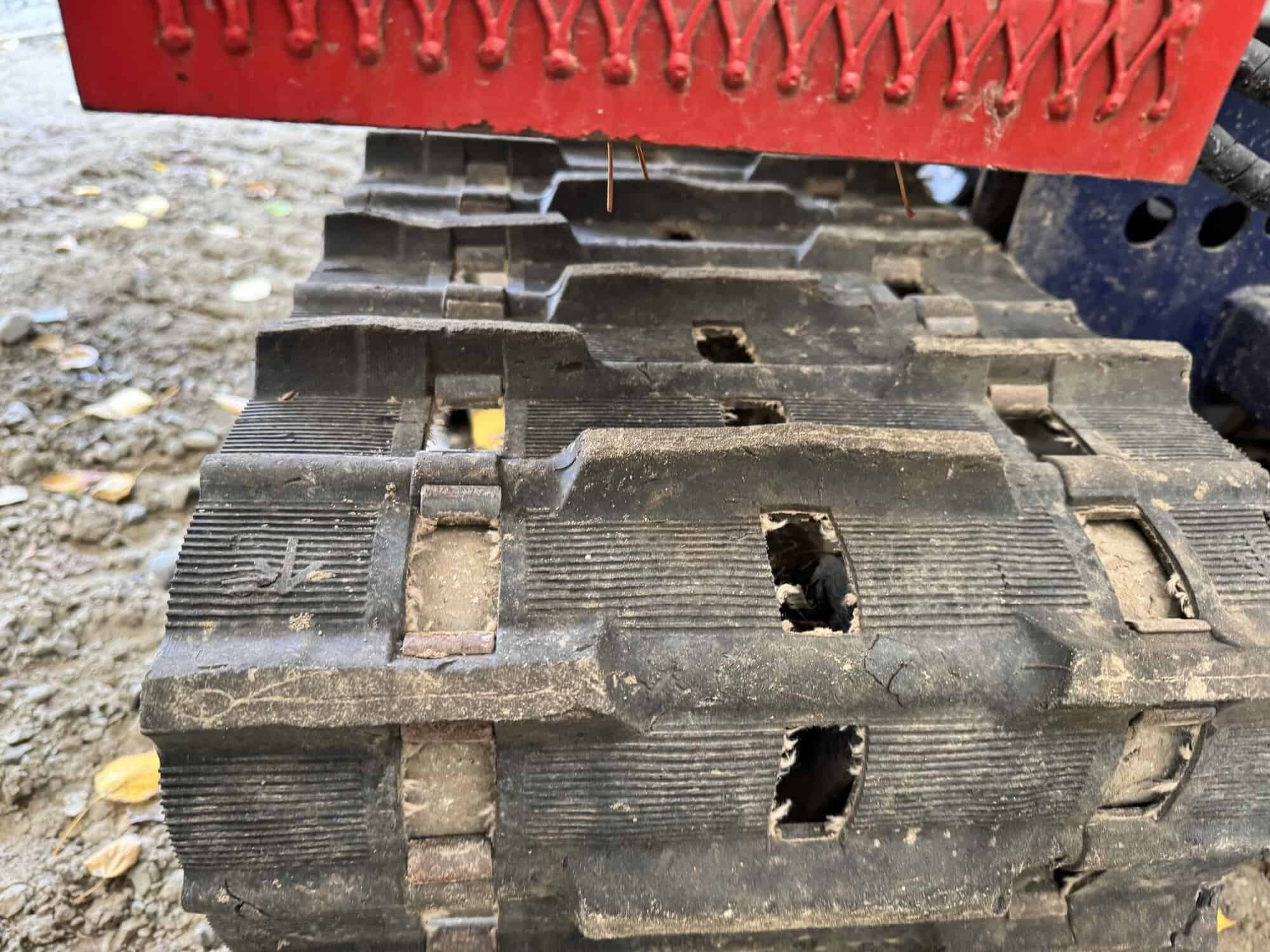

- Tracks are hydraulically BRP Skandik snowmobile rubber 155inch

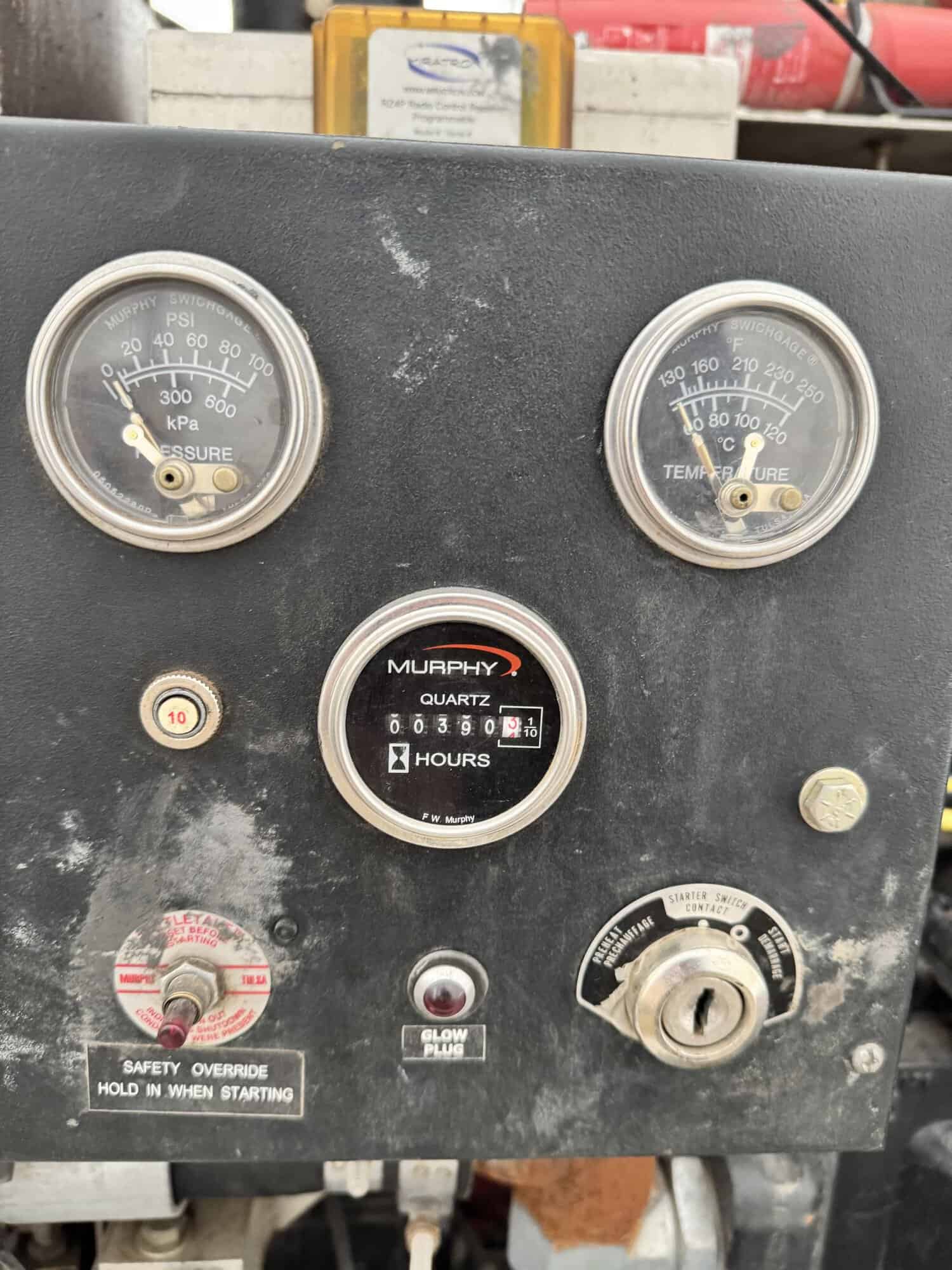

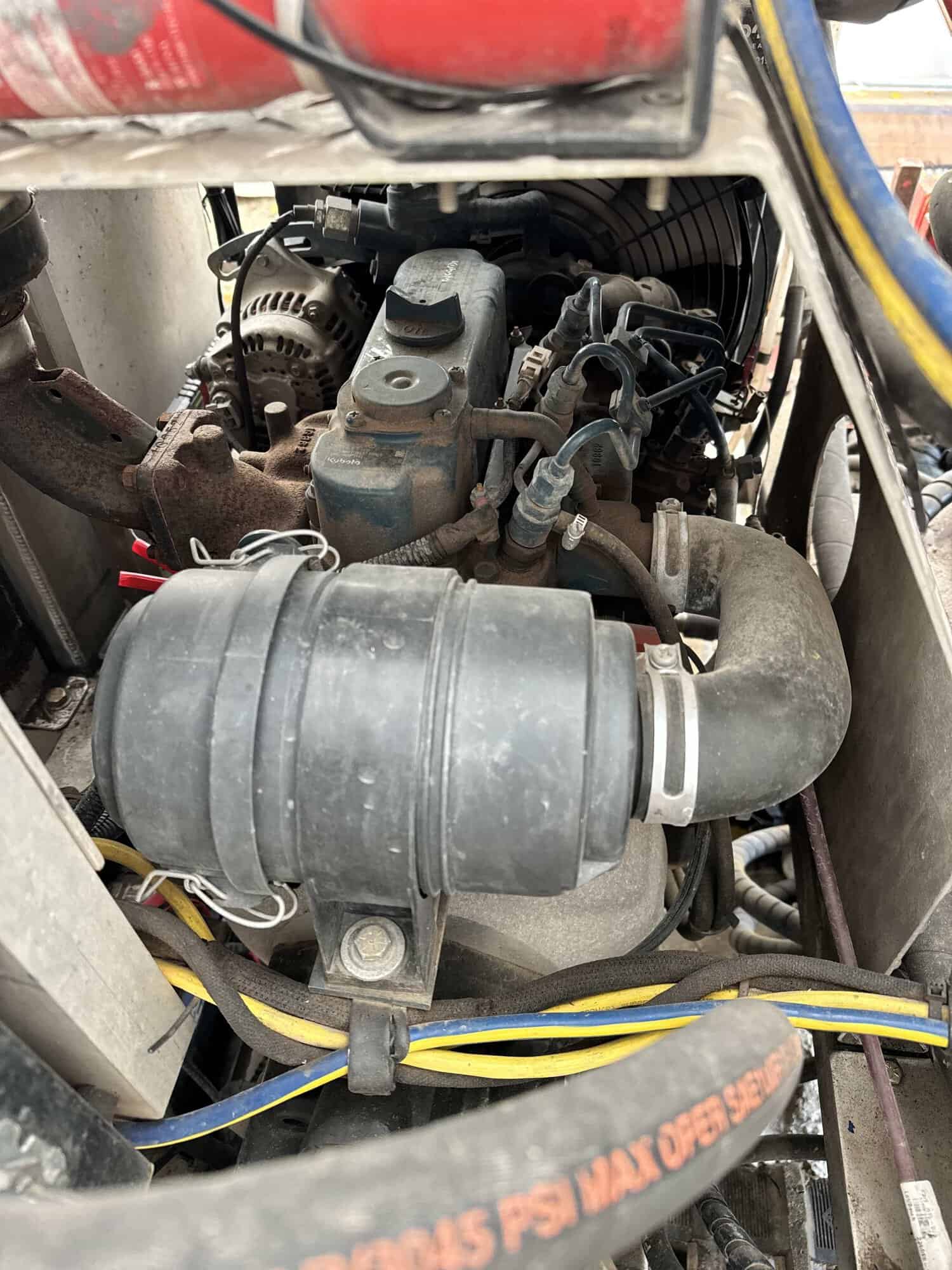

- 20 hp Kubota engine – 390 hours
- Chain feed – 5,000lb pullback

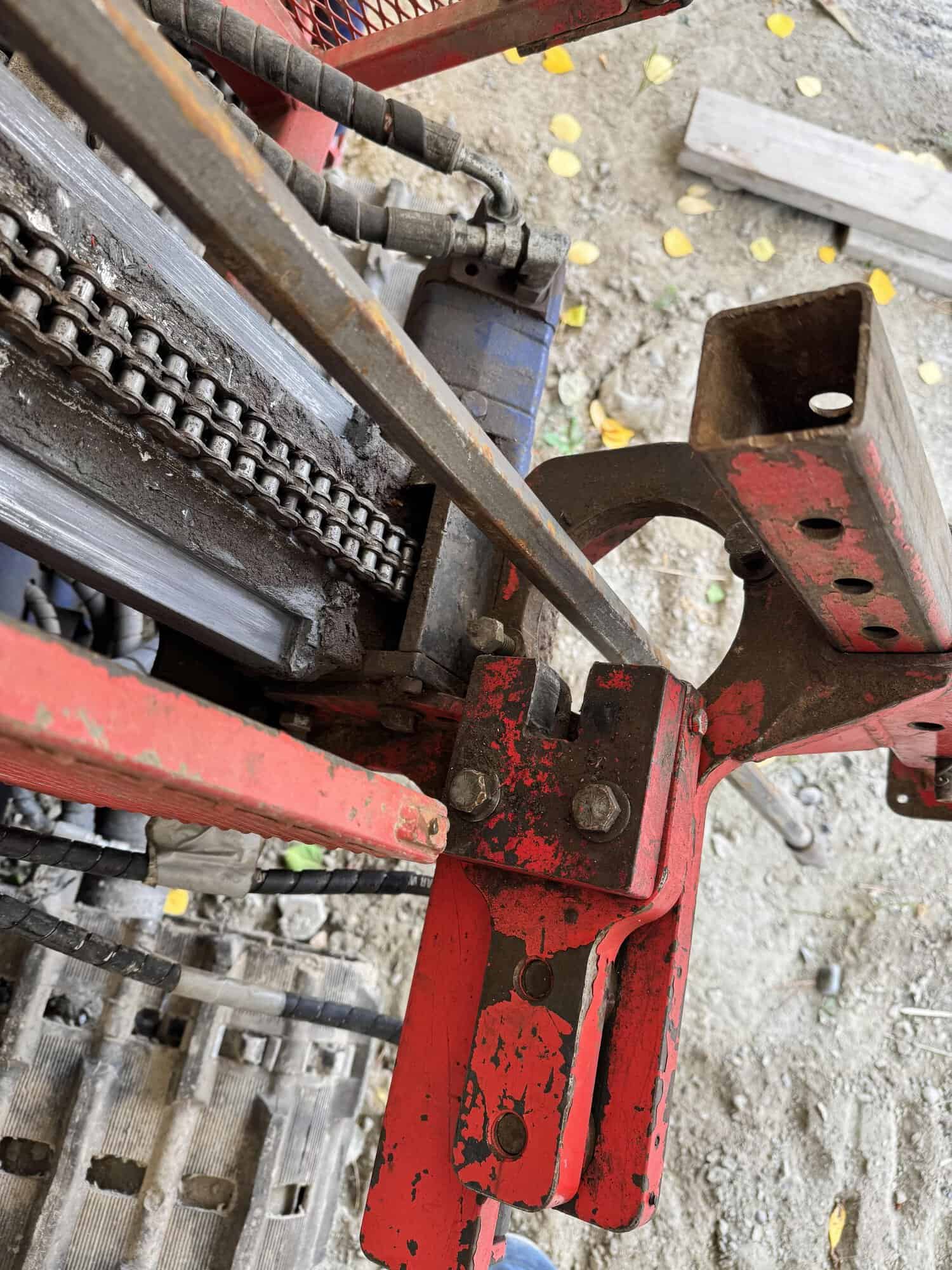

- Hydraulic foot clamp
- Safety cage with rotation interlock

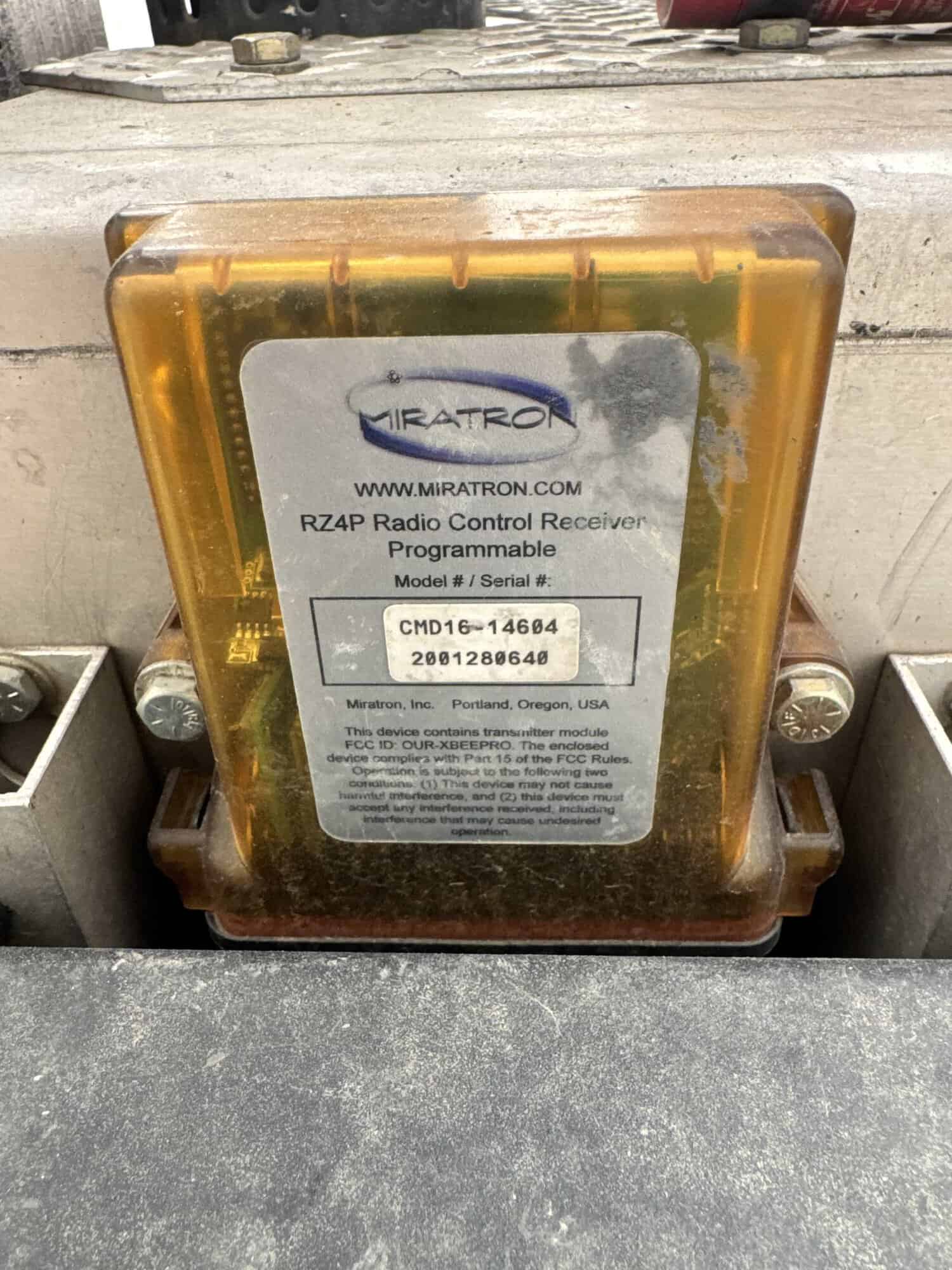

- Radio remote-control for tracks with remote kill switch
- Quick-disconnect tracks and hydraulics
- Designed for truck transport on one standard pallet
- Diamond, Auger and Reverse Circulation heads available
- Set up for geotechnical and exploration sampling to 15m depths
- Safety certified by Teck Resources and Barrick Gold
- Helicopter sling points with double-redundant cable safety

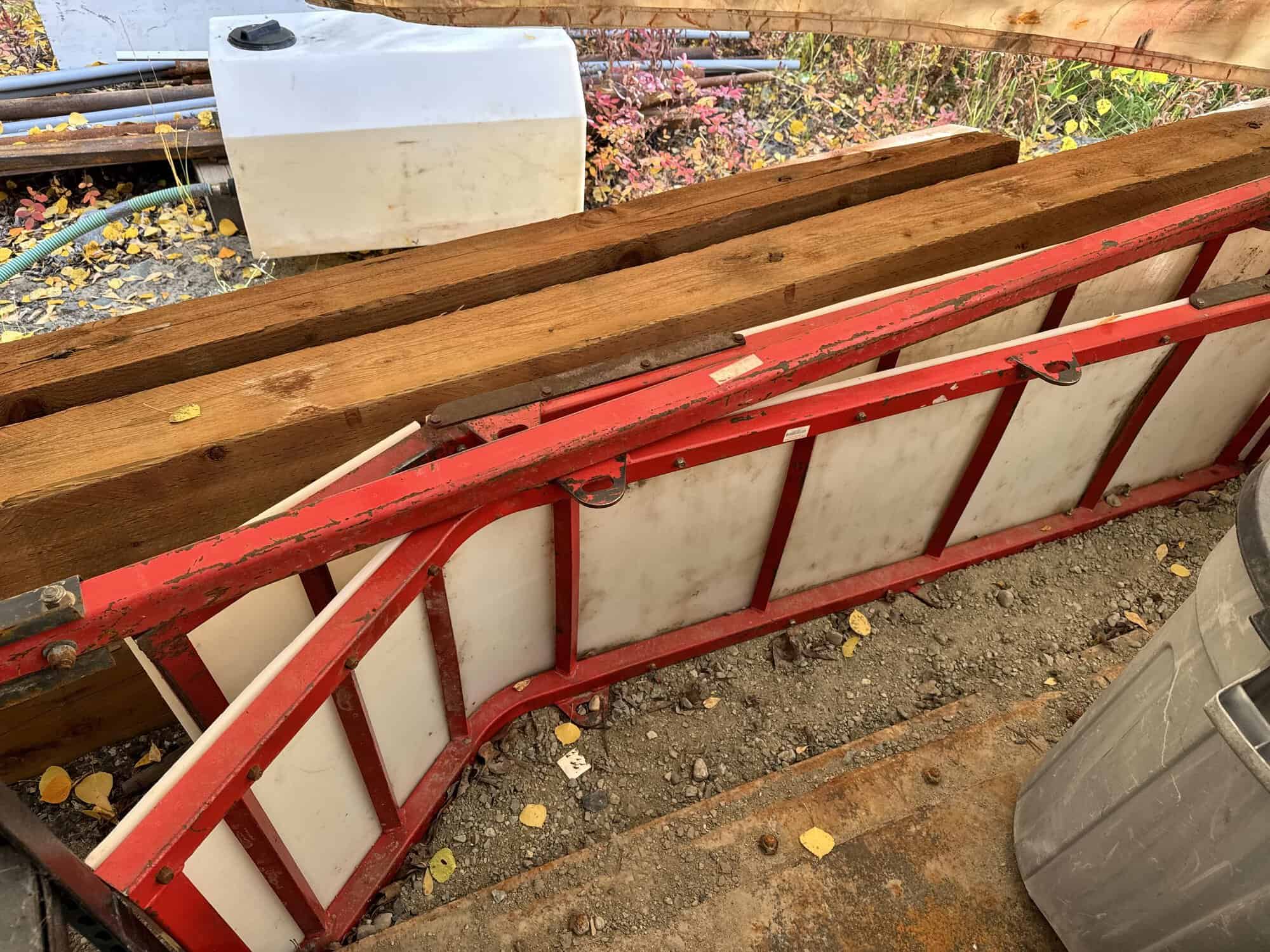

- Comes with draw bar and skis for long-distance tracked winter UTV towing
Asking Price: $110,000 USD
For more information on this 2023 Quantum Machine Works QLD ShockAuger Drill Rig please contact Rig Source at (630) 365-1649.
